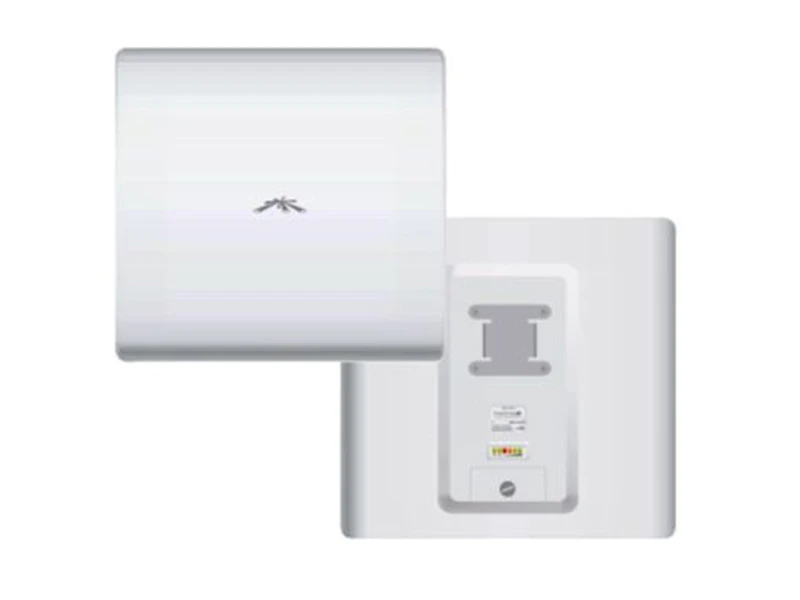

Ubiquiti 3.5GHz PBM3 PowerBridge MIMO AIRMAX

SYSTEM INFORMATION

• Processor Specs Atheros MIPS 24KC, 400MHz
• Memory Information 64MB SDRAM, 8MB Flash
• Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
• Polarization Dual Linear V-pol Beamwidth 13.5 deg
• Cross-pol Isolation 28dB minimum Elevation Beamwidth 13.5 deg.
• INTEGRATED DUAL-POLARITY ANTENNA
• Frequency Range 3.3-3.8GHz Max VSWR 1.5:1
• Gain 20 dBi H-pol Beamwidth
• Operating Temperature -30C to +80C
• Operating Humidity 5 to 95% Condensing
• Shock and Vibration ETSI300-019-1.4
• Max Power Consumption 8 Watts
• Power Supply 24V, 1A surge portection integrated POE adapter included
• Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Weight 3.82kg
• Enclosure Characteristics Outdoor UV Stabalized Plastic
• Mounting Kit Pole Mounting Kit included
