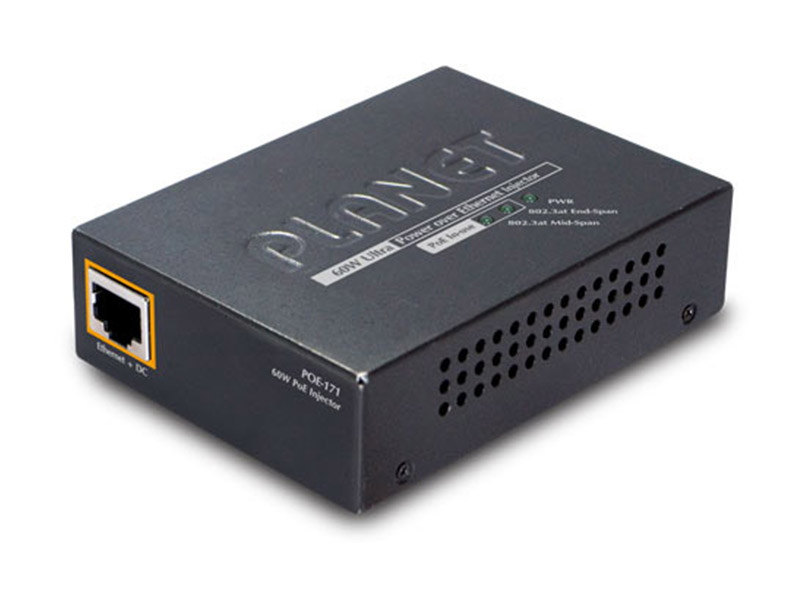

Planet POE 171 PoE Injector

Interface

Power over Ethernet

Ultra Power over Ethernet End-Span/Mid-Span PSE
IEEE 802.3at/af PoE standard compliant
Compatible with All IEEE 802.3at/af powered devices
Supports 56VDC, 60-watt PoE power output at maximum
Auto-detection of PoE IEEE 802.3at/af equipment and device for possible damage by incorrect installation
Automatic detection and protection of non–standard Ethernet terminals
Remote power feeding up to 100 meters

Hardware

Hardware Specifications
Interface	Input Port
	1 x RJ-45 STP
	Data In
	Output Port
	1 x RJ-45 STP
	PoE (Data + Power) Out
	DC socket
	56V DC Input
LED Indicator	System: Power x 1 (Green)
LED Indicator	PoE Port: PoE in Use x 1 (Green)
Network Cable	Ultra PoE (60W):
	10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft)
	802.3af / at PoE(15W / 30W):
	10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	95 x 70 x 26 mm
Weight	237g
Unit Input Voltage	DC 56V
Power Requirements	External AC-to-DC adapter
Power Requirements	100-240V AC, 50/60Hz, 1.5A
Power Consumption	65 watts max.
Operating Temperature	0 ~ 50 degrees C
Storage Temperature	-10 ~ 70 degrees C
Operating Humidity	5 ~ 90%, Relative Humidity, non-condensing
Storage Humidity	5 ~ 90%, Relative Humidity, non-condensing
Power over Ethernet
PoE Standard	IEEE 802.3at High Power over Ethernet End-span / Mid-span PSE
Power Output	DC 56V / 60-watt PoE via 4-pairs
Power Output	DC 56V / 30-watt PoE via 2-pairs
PoE Power Supply Type	End-Span + Mid-Span
Power Pin Assignment	Pair 1: 1/2(-), 3/6(+)
Power Pin Assignment	Pair 2: 4/5(+), 7/8(-)
Standards Conformance
Standards Compliance	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
	IEEE 802.3at High Power over Ethernet
	IEEE 802.3af Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
