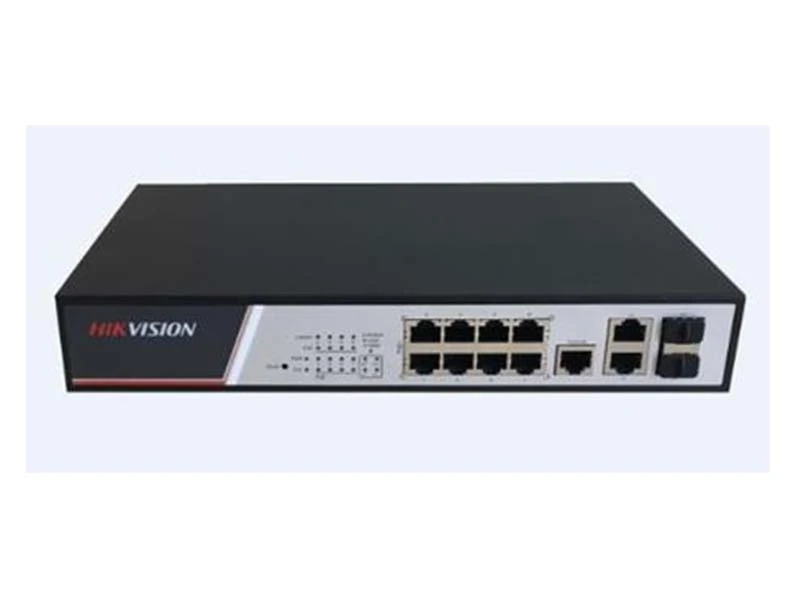

Hikvision DS 3E2310P PoE Switch
Teknik Özellikler
Parameter | |
Port | 8 100M Base-T ports+2 gigabit combo ports |
Backplane Capacity | 10Gbps |
Forwarding | 5.6Mpps |
MAC Table | 8K |
STP | 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) |
BPDU protection, root protection, and loopback protection | |
VLAN | 4K VLAN; GVRP; QinQ; Private VLAN |
QoS | Flow classification based on L2~4 protocols (S2108POE does not support the function.) |
CAR flow limit | |
802.1P/DSCP priority re-labeling (S2108POE does not support the function.) | |
SP, WRR, and “SP+WRR” | |
Congestion avoidance mechanisms like Tail-Drop and WRED | |
Flow monitoring and flow shaping | |
Multicast | IGMP v1/v2/v3 |
IGMP snooping | |
IGMP Fast Leave | |
Multicast group strategy and quantity limitation | |
Multicast flow copying over VLANs (S2108POE does not support the function.) | |
Network Security | L2/L3/L4 ACL flow identification and filtration (S2108POE does not support the function.) |
DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc | |
Broadcast/multicast/unknown unicast storm-control | |
Port isolation | |
Port security, and “IP+MAC+port” binding (S2108POE does not support.) | |
Dimension | 280*179*45 |
Power Consumption | <15W |
Power Over Ethernet | |
PoE Standard | POE/POE+ |
Working Mode | Console, Telnet, SSH2.0, Web |
SNMP v1/v2/v3 | |
TFTP | |
RMON | |
General | |
Power Supply | AC:100V-240V,50Hz±10% |
Power Consumption | 140W(POE 125W) |
Working Temperature | ℃-50℃ |
Working Humidity | 10%-90% non-condensing |
Storage Temperature | -20℃-70℃ |
Storage Humidity | 5%-95% non-condensing |
Dimension | 280*179*45 |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
