Açıklama

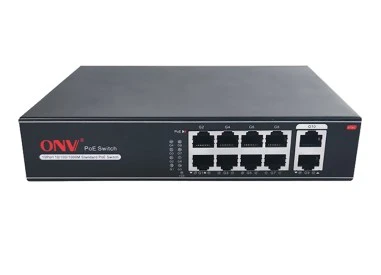

ONV ONV-H1108PLD PoE Switch

Özellikler

Unmanaged AI PoE switch with 10*10/100M RJ45 ports. Port 1-8 can support IEEE 802.3af/at PoE standard.
Adjust function switch, Port 1-8 can support VLAN isolation, 10M/250m transmission, AI self-healing.
Built-in 120W power supply.

Teknik Özellikler

Model	ONV-H1064PLD
Interface Characteristics
Fixed Port	4*10/100Base-TX PoE ports (Data/Power)
Fixed Port	2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port	Port 1-6 (1-10) can support 10/100BaseT (X) auto detect, full / half duplex MDI / MDI-X adaptive
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
Twisted Pair Transmission	100BASE-TX: Cat5 or later UTP(≤100 meter)
Function Switch	E file: long distance transmission and VLAN isolation function
	(Default: OFF, Use:ON)
	D File: AI self-healing mode. When the network fails, PoE watchdog will restart the power supply of the device and automatically repair the network communication. (Default: OFF, Use:ON)
	Note: The function switch can control different functions, which can be enabled separately and simultaneously.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
	IEEE802.3u 100Base-TX
	IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.6Gbps
Forwarding Rate@64byte	0.89Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (green), Network: Link (yellow), POE : PoE (green) functional switch:EXTEND (green)
PoE & Power
PoE Port	Port 1 to 4 IEEE802.3af/at @ POE
Power Supply Pin	Default: 1/2(+),3/6(-), Optional: 4/5(+),7/8(-)
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	65W (AC100-240V)
Power Consumption	Standby<3W, Full load<65W
Power Supply	Built-in power supply, AC 100~240V 50-60Hz 1.0A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+80°C;5%~95% RH Non condensing
Dimension (LWH)	14311540mm
Net /Gross Weight	<0.6kg / <1.0kg
Installation	Desktop, Wall-mounted
Certification & Warranty
Lightning protection / protection level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
Warranty	1 year, lifelong maintenance.
