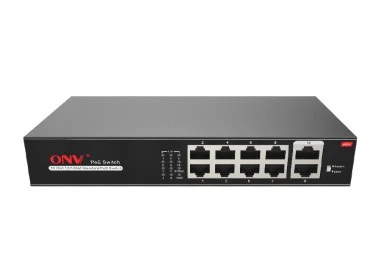

ONV ONV-POE31108PFM PoE Switch

Özellikler

L2 managed PoE fiber switch with 8* 10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M SFP fiber slot ports(combo port), Port 1-8 can support IEEE802.3af/at PoE standard, Built-in 130W power supply.
Support 1U/19 inch rack installation.

Teknik Özellikler

Model	ONV-POE31108PFM
Interface Characteristics
Fixed Port	8*10/100Base-TX PoE ports (Data/Power)
	2*10/100/1000Base-T uplink RJ45 ports (Data)
	2*1000M uplink SFP fiber slot ports (Data)
Ethernet Port	Port 1-8 support 10/100Base-T(X) auto-sensing, Port 9-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption.
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
SFP Slot Port	Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable	Multi mode: 850nm 0 ~ 550M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	64Gbps (Non-blocking)
Forwarding Rate@64byte	4.17Mpps
MAC	16K
Buffer Memory	4.1M
Jumbo Frame	9.2K
CPU(Hz)	500M
DRAM	1G
Flash	128M
LED Indicator	Power:PWR(green), Data:Link(yellow), PoE:PoE(green)
Reset Switch	Yes, One-button factory reset
PoE & Power Supply
PoE Port	Port 1 to 8 IEEE802.3af/at @ POE
PoE Management	PoE working status
	Delay start of power supply
	Scheduling of PoE operation and time
	Distribution for PoE output power of each port
Power Supply Pin	Default 1/2(+),3/6(-), Optional 4/5(+),7/8(-)
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	130W /(AC100-240V)
Power Consumption	Standby<6W, Full load<130W
Power Supply	Built-in power supply, AC100~240V 50-60Hz 2.3A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	27018144.5mm
Net /Gross Weight	<2.8kg /<3.5kg
Installation	Desktop type ,wall mounted,19 inch 1U cabinet installation
Certification & Warranty
Lightning protection / protection level	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty	3 years, lifelong maintenance.
Network Management Features
Interface	IEEE802.3X (Full duplex)
	Broadcast storm control based on port speed
	Speed limit of the message flow in the access port.
	The minimum particle size is 64Kbps.
VLAN	4K VLAN based on port, IEEE802.1q
VLAN	QinQ configuration,VLAN based on protocol
Port Aggregation	LACP, Manual aggregation
Port Aggregation	Support the largest 5 aggregation groups, each aggregation group supports 8 ports.
Spanning Tree	STP(IEEE802.1d), RSTP(IEEE802.1w), MSTP(IEEE802.1s)
Multicast	IGMP Snooping v1/v2/v3, Max 64 multicast groups
Multicast	Fast log out, MLD Snooping v1/v2, Multicast VLAN
Image	Bi-directional traffic mirroring supporting the basic port
QoS	Diff-Serv QoS
	8*Output queues of each port
	802.1p/DSCP priority mapping
	Queue Scheduling Algorithm (SP,WRR,SP+WRR)
	Priority Mark/Remark
ACL	L2-L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range and VLAN etc. Port-based Issuing ACL.
Security	Port isolation
	Broadcast storm control
	Port+MAC binding, IP+MAC+port binding
DHCP	DHCP Relay, DHCP Client, DHCP Snooping
Management	NTP
	Login Record
	SNMP V1/V2C/V3
	One-key recovery
	Web Management (HTTPS)
