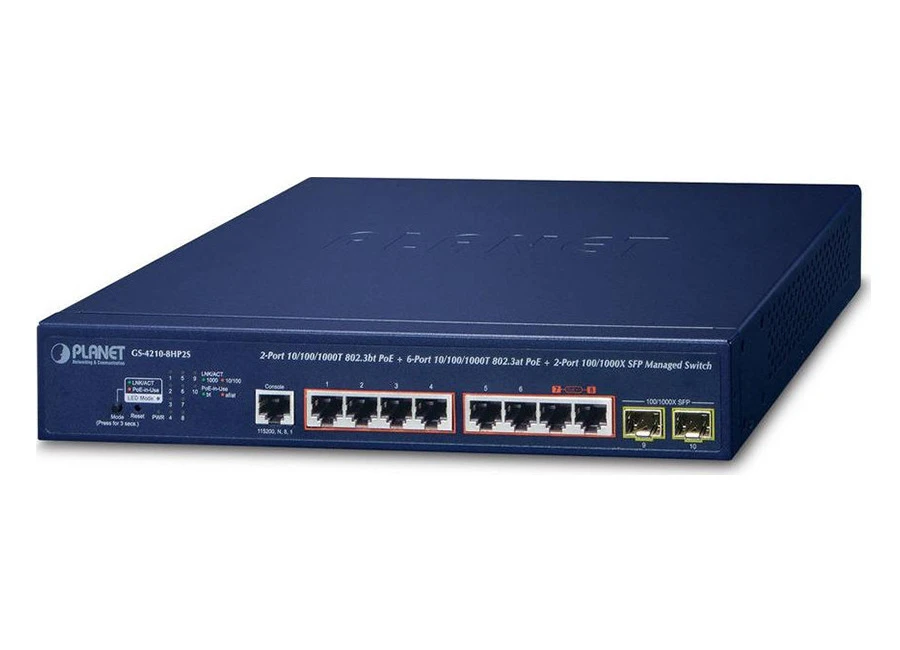

Planet GS-4210-8HP2S PoE Switch

Özellikler

Physical Port
  • 8-port 10/100/1000BASE-T RJ45 copper with PoE injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for switch basic management and setup
  • Complies with IEEE 802.3bt PoE++ and 802.3at PoE+ standard PSEBackward compatible with IEEE 802.3af Power over Ethernet
  • Selectable PoE mode: End-span/Mid-span/802.3bt/UPoE/Legacy
  • Ports 1 to 6 support up to 36 watts
  • Ports 7 to 8 support up to 95 watts
  • Each PoE port supports 54V DC power to powered device
  • 240-watt PoE budget
  • Auto detects powered device
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extended mode
  • PoE management
    -Total PoE power budget control
    -Per port PoE function enable/disable
    -PoE port power feeding priority
    -Per PoE port power limitation
    -PD classification detection
    -PoE extension
  • Intelligent PoE features
    -PD alive check
    -PoE schedule
    -Scheduled power recycling
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
    -IEEE 802.1Q tagged VLAN
    -Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    -Protocol VLAN
    -Voice VLAN
    -Private VLAN
    -Management VLAN
    GVRP
  • Supports Spanning Tree Protocol
    -STP (Spanning Tree Protocol)
    -RSTP (Rapid Spanning Tree Protocol)
    -MSTP (Multiple Spanning Tree Protocol)
    -STP BPDU Guard, BPDU filtering and BPDU forwarding
  • Supports Link Aggregation
    -IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    -Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress and egress rate limit per port bandwidth control
  • Storm control support
    Broadcast/Unknown unicast/Unknown multicast
  • Traffic classification
    -IEEE 802.1p CoS
    -TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
Security
  • Authentication
    -IEEE 802.1X port-based network access authentication
    -Built-in RADIUS client to cooperate with the RADIUS servers
    -RADIUS/TACACS+ login user access authentication
  • Access control list
    -IPv4/IPv6 IP-based ACL
    -MAC-based ACL
  • MAC security
    -Static MAC
    -MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH/SSL
Management
  • IPv4 and IPv6 dual stack management
  • Switch management interface
    -Web switch management
    -Telnet command line interface
    -SNMP v1 and v2c switch monitoring
    -SSHv2 and TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    -Four RMON groups (history, statistics, alarms and events)
    -SNMP trap for interface link up and link down notification
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System maintenance
    -Firmware upload/download via HTTP/TFTP
    -Configuration upload/download through web interface
    -Dual images
    -Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    -SFP-DDM (digital diagnostic monitor)
    -Cable diagnostics
    -ICMPv4/ICMPv6 remote ping
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Event message logging to remote Syslog server
  • PLANET smart discovery utility
  • Smart fan with speed control



Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 200-400 Watt
