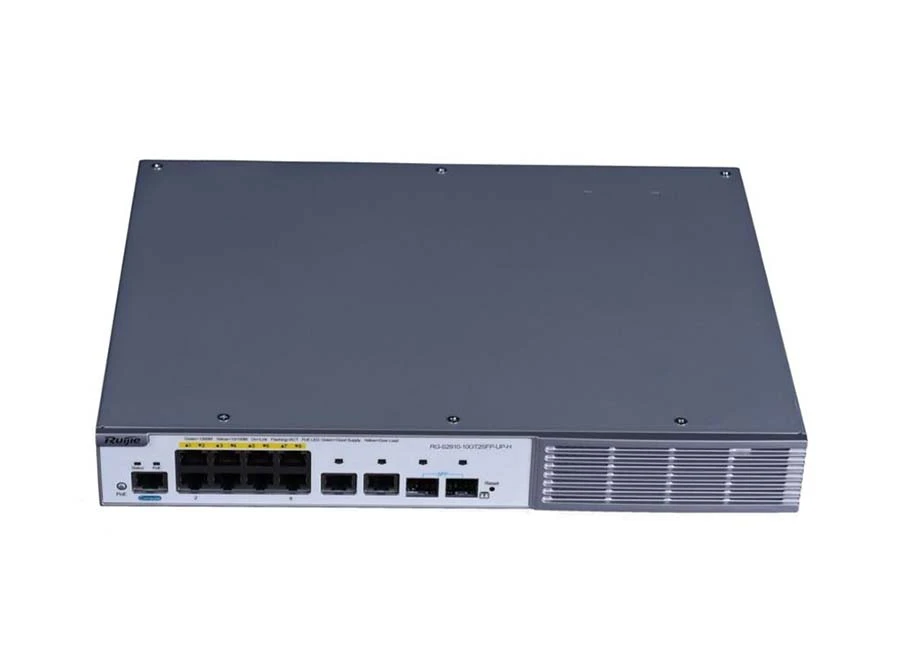

Ruijie RG S2910 10GT2SFP UP H PoE Switch
Teknik Özellikler
Model | RG-S2910-10GT2SFP-UP-H |
CPU | Built-in CPU, single-core processor, 400MHz |
Flash Memory | 256M |
SDRAM | DDRIII 512MB |
Optical Module | Supports 1000base-X only. For details, see Appendix B. |
* The supported module type may change at any time. Consult us for the latest information. | |
SFP Port | Supports 1000Base-X modules. |
Power Supply | l AC input |
Rated voltage range: 100V to 240V | |
Maximum voltage range: 90V to 264V | |
Frequency: 50/60 Hz | |
Rated current: 8A | |
l HVDC input | |
Voltage range: 192V to 290V | |
Current range: 0A to 6A | |
Earth Leakage Current | ≤3.5mA |
EEE | Supported |
PoE | Ports 1-8 are HPoE-capable with the maximum power output of 95W. |
The maximum output power is as follows. | |
l AC input | |
90 to175VAC: 380W | |
175 to 264VAC: 760W | |
l HVDC input | |
192 to 220VDC: 380W | |
220 to 290VDC: 760W | |
* The HPoE ports support the maximum power supply of 95W only when connected with HPoE PDs. For example, RG-PBOX-DC12 and RG-PBOX-AC24. | |
* HPoE ports support IEEE 802.af/at PoE. | |
* The available number of PDs is determined by PSE output power and PD input power in practice. | |
Power Consumption | Less than 30W with no PoE load |
Less than 870W with full PoE load | |
Operating Temperature | ℃ to 50℃ (32°F to 122°F) |
Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
Operating Humidity | 10% to 90% RH |
Storage Humidity | 5% to 95% RH |
Fan | Speed adjustment and fault alarm |
Temperature Warning | Supported |
EMCStandards | GB9254-2008 |
Security Standards | GB4943-2011 |
Dimensions | 340 mm x 260 mm x 44 mm |
(W x D x H) | |
Weight | ≤4.0 kg (with package) |
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 50-130 Watt
