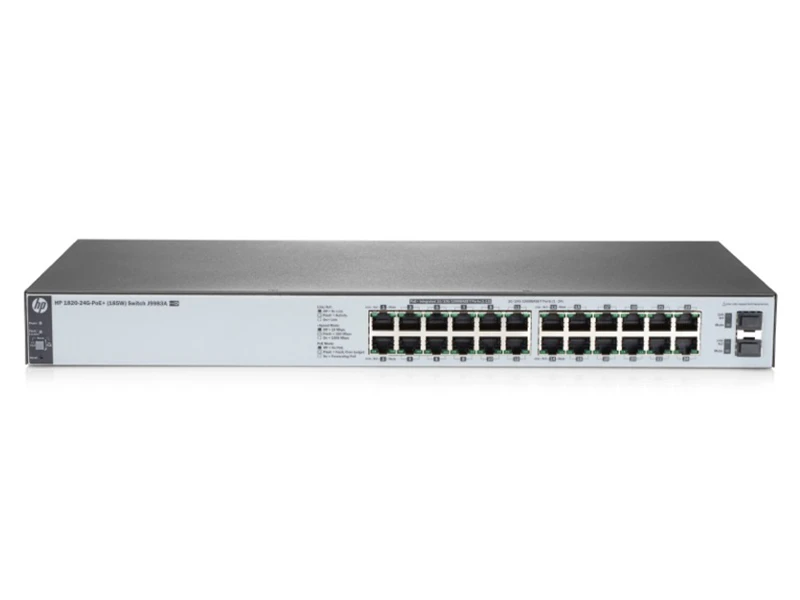

HP 1820 24G PoE Plus J9983A 10/100/1000 PoE Switch

Teknik Özellikler

Dimensions & Weight
Depth:
9.7 in
Height:
1.7 in
Weight:
7.3 lbs
Width:
17.4 in
Environmental Parameters
Humidity Range Operating:
15 - 95% (non-condensing)
Humidity Range Storage:
15 - 95% (non-condensing)
Max Operating Temperature:
104 °F
Max Storage Temperature:
158 °F
Min Operating Temperature:
32 °F
Min Storage Temperature:
-40 °F
Flash Memory
Installed Size:
16 MB
Header
Brand:
HPE
Compatibility:
PC
Country Kits:
United States
Localization:
English
Manufacturer:
ProCurve Networking
Model:
1820-24G-PoE+ (185W)
Packaged Quantity:
1
Product Line:
HPE
Interface Provided
Comments:
PoE+
Connector Type:
RJ-45
Qty:
12
Type:
1000Base-T
Connector Type:
SFP
Qty:
2
Miscellaneous
Compliant Standards:
CSA 22.2 No. 60950 , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-4-11 , EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-4-8 , EN55022 , EN55024 , FCC Class A certified , FCC Part 15 B , ICES-003 , IEC 60950 , UL 60950 ,VCCI
Encryption Algorithm:
SSL
Height (Rack Units):
1
Rack Mounting Kit:
Included
Networking
Compliant Standards:
IEEE 802.1ab (LLDP) , IEEE 802.1p , IEEE 802.1Q , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3u , IEEE 802.3x
Features:
Auto-uplink (auto MDI/MDI-X) , BOOTP support , DHCP support , DoS attack prevention , Flow control , Full duplex capability , Jumbo Frames support , Layer 2 switching , LLDP support , Port mirroring , Quality of Service (QoS) , SNTP support , VLAN support
Form Factor:
Desktop , Rack-mountable , Wall-mountable
Jumbo Frame Support:
Yes
MAC Address Table Size:
8000 entries
Manageable:
Yes
PoE Budget:
185 W
Ports Qty:
24
Power Over Ethernet (PoE):
PoE+
Remote Management Protocol:
HTTPS , SNMP 1 , SNMP 2c
Subcategory:
Network hubs and switches
Subtype:
Gigabit Ethernet
Type:
Switch
Performance
Type:
Throughput
Value:
Up to 38.6 Mpps
Type:
Switching capacity
Value:
52 Gbps
Ports
Qty:
12
Type:
10/100/1000 (PoE+)
Ports (2nd)
Qty:
12
Type:
10/100/1000
Ports (3rd)
Qty:
2
Type:
Fast Ethernet/Gigabit SFP
Power Device
Frequency Required:
50/60 Hz
Nominal Voltage:
AC 120/230 V
Type:
Internal power supply
Processor
Clock Speed:
400 MHz
RAM
Installed Size:
128 MB
Technology:
SDRAM



pdfHP 1820 24G PoE Plus J9983A 10/100/1000 PoE Switch Pdf Dosyası310.63 KB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 12 Port
PoE Güç Bütçesi : 130-200 Watt
Montaj Tipi : Rack Mount
Desk Mount
PoE : Hibrid
