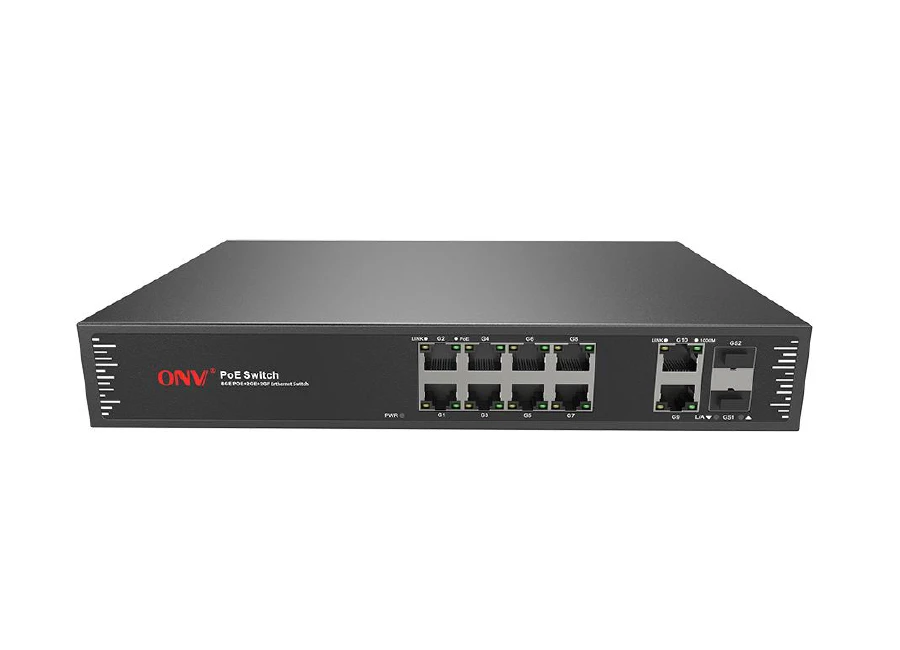

ONV ONV-POE33128PF PoE Switch
Özellikler
Teknik Özellikler
Model | ONV-POE33128PF |
Interface Characteristics | |
Fixed Port | 8*10/100/1000Base-T PoE ports (Data /Power) |
2*10/100/1000Base-T uplink RJ45 ports (Data) | |
2*1000Base-X uplink SFP ports (Data) | |
Ethernet Port | 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter) | |
1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance | Multi-mode: 850nm /0 ~ 500M,single mode: 1310nm /0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
Chip Parameter | |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X, IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 24Gbps (Non-blocking) |
Forwarding Rate@64byte> | 17.86Mpps |
MAC | 4K |
Buffer Memory | 4M |
Jumbo Frame | 9.6K |
LED Indicator | Power: PWR (green), network:Link, Link/Act (yellow),PoE: PoE(green) SFP port: L/A (green), speed : 1000M (green) |
PoE & Power Supply | |
PoE Port | Port 1 to 8 IEEE802.3af/at @ POE |
Power Supply Pin | Default 1/2 (+), 3/6 (-) |
Max Power Per Port | 30W; IEEE802.3af/at |
Total PWR / Input Voltage | 130W (AC100-240V) |
Power Consumption | Standby:<8W, Full Load:<120W |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 2.3A |
Physical Parameter | |
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing |
Dimension (L*W*H) | 270*181*44.5mm |
Net /Gross Weight | <1.5kg /<2.0kg |
Installation | Desktop, wall mounted,19 inch 1U cabinet |
Certification & Warranty | |
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
Warranty | 3 years, lifelong maintenance. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 8 Port
