Açıklama

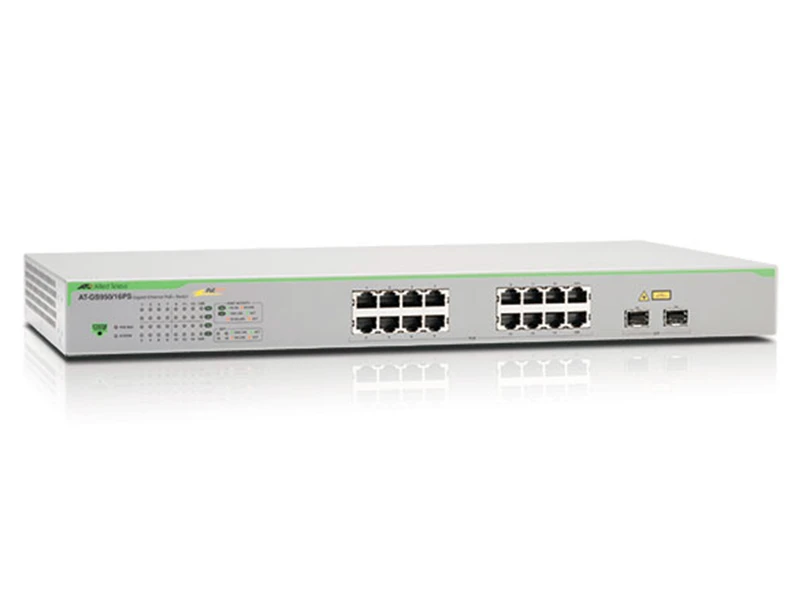

Allied Telesis AT GS950/16PS 10/100/1000 PoE Switch
Özellikler
- 16 x 10/100/1000T ports
- Power over Ethernet Plus (PoE+)
- 2 SFP Combo ports
- Double the MAC table size of other WebSmart switches in the market
- Web-based management
- 802.1X Security
- VLANs
- Link aggregation
- Port setting
- Port mirroring
- IGMP snooping(v1/v2)
- Static multicast group
- Spanning Tree, 802.1d/w/m
- Desktop or rack/wall mountable
- Low power consumption
Teknik Özellikler
| General |
| Enclosure Type |
| Desktop, rack-mountable, wall-mountable |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 16 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP (PoE+) |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 185 |
| Performance |
| Switching capacity : 32 Gbps |
| Throughput : 23.8 Mpps |
| Jumbo Frame Support |
| 10KB |
| Authentication Method |
| RADIUS |
| RAM |
| 64 MB |
| MAC Address Table Size |
| 8K entries |
| Authentication Method |
| RADIUS |
| Power Over Ethernet (PoE) |
| PoE+ |
| Status Indicators |
| Port status, system, PoE |
| Encryption Algorithm |
| MD5 |
| Jumbo Frame Support |
| 10KB |
| PoE Budget |
| 185 W |
| Manufacturer |
| Allied Telesyn |
| Camera |
| Installed Size |
| 16 MB |
| Networking |
| MAC Address Table Size |
| 8K entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Gigabit Ethernet |
| Form Factor |
| desktop, rack-mountable, wall-mountable |
| Type |
| switch |
| Features |
| Broadcast Storm Control, DHCP client, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, VLAN support, firmware upgradable, flow control, port mirroring, trunking, DHCP snooping, IGMP snooping, LLDP support, Link |
| Aggregation Control Protocol (LACP), MAC address filtering, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support |
| Compliant Standards |
| IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3u |
| Jumbo Frame Support |
| 10KB |
| Ports Qty |
| 16 |
| Manageable |
| Yes |
| PoE Budget |
| 185 |
| Remote Management Protocol |
| HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 |
| Power Over Ethernet (PoE) |
| PoE+ |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Power Consumption Operational |
| 21.8 Watt |
| Type |
| internal power supply |
| Interface Provided |
| Qty |
| 10, 2, 6 |
| Connector Type |
| SFP (mini-GBIC) |
| Comments |
| PoE |
| Miscellaneous |
| Rack Mounting Kit |
| included |
| Encryption Algorithm |
| MD5 |
| MTBF |
| 263000 sec |
| Mounting Kit |
| included |
| RAM |
| Installed Size |
| 64 MB |
| Environmental Parameters |
| Humidity Range Storage |
| 5 - 95% (non-condensing) |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 104 °F |
| Min Storage Temperature |
| -13 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 5 - 90% (non-condensing) |
| Header |
| Brand |
| Allied Telesis |
| Product Line |
| Allied Telesis AT |
| Model |
| GS950/16PS |
| Country Kits |
| United States |
| Packaged Quantity |
| 1 |
| Compatibility |
| PC |
| Dimensions & Weight |
| Depth |
| 9.8 in |
| Width |
| 16.9 in |
| Height |
| 1.7 in |
| Weight |
| 7.85 lbs |
| Service & Support |
| Type |
| limited lifetime warranty |
| Service & Support Details |
| Type |
| limited warranty |
| Full Contract Period |
| lifetime |
| Ports |
| Type |
| 10/100/1000 (PoE+) |
| Qty |
| 16 |
| Performance |
| Type |
| switching capacity, throughput |
| Value |
| 23.8 Mpps, 32 Gbps |
| Ports (2nd) |
| Type |
| combo Gigabit SFP (PoE+) |
| Qty |
| 2 |
| Capacity |
| Type |
| ACL entries, virtual interfaces (VLANs) |
| Value |
| 240, 256 |
Allied Telesis AT GS950/16PS 10/100/1000 PoE Switch PDF Dosyası482.64 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Montaj Tipi : Rack Mount
PoE Port Sayısı :
16 Port
16 Port PoE Güç Bütçesi : 130-200 Watt
Aktarım Türü : Combo
Montaj Tipi : Wall Mount
