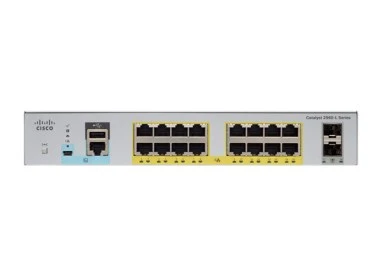

Cisco Catalyst 2960L 16PS LL PoE Switch

Teknik Özellikler

Configurations
10/100/1000 Ethernet Ports	16
Uplink Interfaces	2 SFP
Available PoE Power	120W
Fanless	Y
Dimensions (H x D x W)	1.73 x 9.45 x 10.56 in. (4.4 x 24 x 26.8 cm)
Net Weight	5.73 lb (2.6 kg)
Console Ports
RJ45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and Processor
CPU	ARMv7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate (64-byte L3 packets)	26.78 Mpps
Unicast MAC addresses	8K
Maximum active VLANs	64
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	1
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
MTBF in hours (Data)	2,416,689
MTBF in hours (PoE)	313,496
Environment
Operating temperature
Up to 5,000 ft	23ºF to 113ºF (–5ºC to 45ºC)
Up to 10,000 ft	23ºF to 104ºF (–5ºC to 40ºC)
Operating altitude	10,000 ft (3000m)
Operating relative humidity	5% to 90% at 40ºC
Storage temperature	–13º to 158ºF (–25º to 70ºC)
Storage altitude	15,000 ft (4500m)
Storage relative humidity	5% to 95% at 65ºC
Storage altitude	Minimum ambient temperature for cold start is 0°C (32°F)
Electrical	PoE
Voltage (autoranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.24A to 0.28A
Power rating (maximum consumption)	0.19 kVA
Power consumption (watts)
0% traffic	21.9
10% traffic	27.1
100% traffic	27.1
Weighted average	25.4
Safety and Compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity	EN55024, CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Connectors and Interfaces
Ethernet interfaces	10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
	100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
	1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
	1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	Per-port status: link integrity, disabled, activity, speed, and full duplex
Indicator LEDs	System status: system, PoE, and link speed
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Console cables	CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
