Açıklama

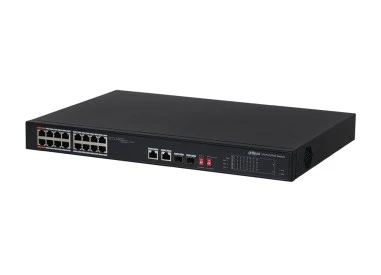

Dahua PFS3220-16GT-240 PoE Switch

Özellikler

Teknik Özellikler

Intelligent PoE
Red Port Supports BT 90W
All-giga Ports
Smooth Transmission
Wide Working Temperature: –10 to 55°C (14°F to 131°F)
Plug and Play

Camera
Image Sensor	1/2.8" STARVIS™ CMOS
Pixel	4MP
Max. Resolution	2560 (H) x 1440 (V)
ROM	4GB
RAM	1GB
Electronic Shutter Speed	1/3–1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 Lux@F1.3
	B/W: 0.0005 Lux@F1.3
	0 Lux (IR light on)
Illumination Distance	150 m (492.13 ft)
Illuminator On/Off Control	Zoom Prio/Manual/SmartIR
Illuminator Number	4
Lens
Focal Length	4.9 mm–156 mm
Max. Aperture	F1.35–F4.4
Field of View	H: 68.3°–2.2°; V: 38.9°–1.3°; D: 68.3°–1.4°
Optical Zoom	32x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft )
Iris Control	Auto/Manual
DORI Distance	Detect	Observe	Recognize	Identify
	3034 m	1213 m	606 m	303 m
	(9954.06 ft)	(3979.66 ft)	(1988.19 ft)	(994.09 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360°; Tilt: -10°–+90°
Manual Control Speed	Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD
	Pelco-P/D (auto recognition)
General Intelligence
Event Trigger	Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
IVS	Object abandoned/missing
Artificial Intelligence
Smart Capture	Support human, motor vehicle and non-motor vehicle image capture.
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection	Support
SMD Plus	Support
Auto Tracking	Support
Video
Compression	H.265/H.265+/H.264+/H.264/MJPEG (sub stream)
Streaming Capability	3 streams
Resolution	4M (2560 × 1440)/3M (2048 × 1536)/1080p (1920 × 1080)/720p (1280 × 960)/D1 (704 × 576/704 × 480)/CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
	Sub stream 1: D1/CIF (1–25/30 fps)
	Sub stream 2: 720P (1–25/30 fps)
Bit Rate Control	Variable Bit Rate/Constant Bit Rate
Bit Rate	H.265/H.264: 3 kbps–20480 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Support
WDR	120dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Image Stabilization	Electronic
Defog
Digital Zoom	16x
Flip	°/180°
Privacy Masking	Up to 24 areas
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB, ANSI C63.4-2014
Audio
Compression	G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Port
Audio I/O	1 (Line in; bare wire)/1 (Line out; bare wire)
Alarm I/O	2./1
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP
Interoperability	ONVIF Profile S&G&T; CGI
Streaming Method	Unicast/Multicast
User/Host	19 (Total bandwidth 48M)
Storage	FTP; Micro SD card (256G); P2P
Browser	IE7 and newer versions
	Chrome 42 and older versions
	Firefox 52 and older versions
	Safari
Management Software	Smart Player
	Smart PSS
	DSS
	Easy4ip
Mobile Phone	IOS/Android
Power
Power Supply	DC 24 V/2.5 A ± 25%;
	PoE+(802.3at)
Power Consumption	11 W
	24 W (IR on)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤ 95%RH
Protection	IP66; TVS 6000 V lightning protection; surge protection
Structure
Dimensions	Φ186 mm x 309 mm (7.32" × 12.17")
Net Weight	3.9 kg (8.60 lb)
Gross Weight	7.01 kg (15.45 lb)
Casing	Metal
