Açıklama

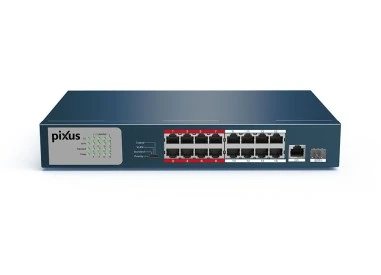

EZ-IP SW4218 16ET P240 PoE Switch
Özellikler
- 16 Port PoE Switch
- 16FE PoE / 2GE Combo
- 250 Metreye POE iletimi Mesafesi
- 16 Port POE Switch,
- 2*10/100/1000 Base-T (Combo port)
- 2*1000 Base-X (Combo port)
- 16*10/100 Base-T PoE Güç Kaynağı
- PoE Herbir Güç Tüketimi: ≤30W
- PoE Güç Tüketimi Toplam ≤240W
- PoE +
- Hi-PoE(250 metre iletim uyumlu ürünler ile)
- IEEE802.3af / IEEE802.3at PoE Protokollerini Destekler
- Anahtarlama Kapasitesi 8.8G
- Paket Yönlendirme Oranı 5.36Mpps
- AC100~240V
Teknik Özellikler
| Technical Specification | |
| Ethernet Port | 2*10/100/1000 Base-T (Combo port) |
| 2*1000 Base-X (Combo port) | |
| 16*10/100 Base-T (PoE power supply) | |
| PoE Power Consumption | Port1/2 support Hi-PoE (60W), PoE+, PoE |
| Each power ≤30W | |
| Total≤240W | |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8G |
| Packet Forwarding Rate | 5.36Mpps |
| Humidity | 10%~90% |
| Power | AC 100~240V |
| Lightning Protection | Common Mode 4KV |
| Differential Mode 2KV | |
| Working Temperature | ﹣10℃~55℃ |
| Weight | 3.51kg |
| Dimension(W×D×H) | 440mm x300mm x44mm |
| Accessories Model | |
| SF3950 | 1.25G 850nm,500m,LC, Multi-mode |
| SF3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| SF3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| Service Characteristics | |
| System | Username / password: admin/admin |
| IP Address :192.168.1.110/24 | |
| PoE Budget | 240W |
| MAC Table | 4K |
| VLAN | 802.1Q Standard VLAN |
| Spanning Tree | STP |
| RSTP | |
| Port Aggregation | Static link aggregation |
| LACP protocol | |
| Mirroring | Many-to-one port mirroring |
| DHCP | Support DHCP-Client |
| Long Distance Mode | "Power & Data" transmission distance up to 250m |
| Flow Control | Half-duplex based on back pressure type control; |
| Full duplex based on PAUSE frame | |
| Security Features | IP+MAC binding based on port; |
| IEEE802.1x port authentication | |
| System Maintenance | One-key recovery |
| Support the updated packet upload | |
| System log | |
| QoS | High and low priority, WRR |
| 802.1P, DSCP | |
| Support priority according to protocol | |
| Network Management | WEB(http and https protocol) |
| Support SNMP V1/V2C/V3 | |
| PoE Management | PoE setting (real-time port comsumption) |
| PoE event statistics | |
| Green PoE | |
EZ-IP SW4218 16ET P240 PoE Switch Pdf Dosyası2.02 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
Çalışma Mesafesi : 250 Mt.
PoE Port Sayısı :
16 Port
16 Port PoE Güç Bütçesi : 200-400 Watt
