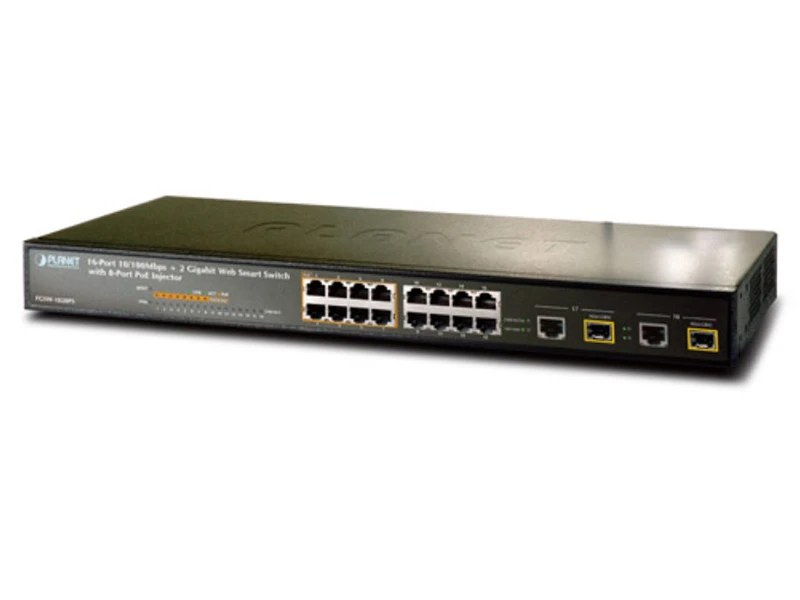

Hardware Specifications
Fast Ethernet Ports
16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports
Gigabit Ports
2 Gigabit TP / SFP combo interfaces
Power over Ethernet Ports
8-Port with PoE injector function (Port 1 to port 8)
Switch Processing Scheme
Store-and-Forward
Throughput (packet per second)
5.35Mpps.
Switch Fabric
7.2Gbps
Address Table
4K entries
Share Data Buffer
2.75Mb embedded memory for packet buffers
Flow Control
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Dimensions
440 x 120 x 44 mm (1U height)
Weight
2.02 kg
Power Requirements
100-240V AC, 50-60 Hz, 1A
System Operation Power Consumption / Dissipation (Full load)
131 watts / 446.71BTU
Temperature
Operating: 0~50 degrees C
Storage: -40~70 degrees C
Operating Humidity
5% to 90%, Storage: 5% to 90% (non-condensing)
Power over Ethernet
PoE Standard
IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type
End-Span
PoE Power Output
Per Port 48V DC, 350mA. Max. 15.4 watts
Power Pin Assignment
1/2(+), 3/6(-)
Power Budget
110 watts
Smart Functions
System Configuration
Web interface
Alert Trap
SNMP Trap for alarm notification of events
Port Configuration
Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port
Bandwidth Control
Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps
Broadcast Storm Control
Yes, 5% / 10% / 25% / 50% / Disable
Port Statistics
Display each port's detail Ethernet traffic counter information
VLAN
16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
Port Trunking
Support 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk
Port Mirroring
Port mirroring allows monitoring of the traffic across any port in real time
QoS
Allow to assign low / high priority on each port.
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
MAC Address / TCP & UDP Filter
Yes
IGMP Snooping v1 / v2
Allow to disable or enable
PoE Power Control
Allow to disable or enable power provision and assign priority on each PoE port
Standards Conformance
Regulation Compliance
FCC Part 15 Class A, CE
Standards Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fst Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex Flow control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p QoS





Teknik Kısa

PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı : Tooltip 8 Port
PoE Güç Bütçesi : 50-130 Watt
