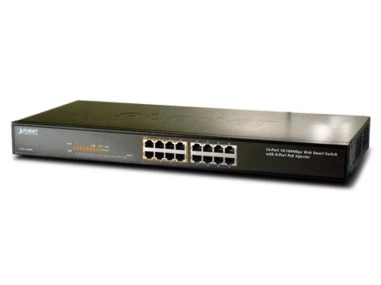

Planet FNSW 1600P 10/100 PoE Switch
Teknik Özellikler
Hardware Specification | |
Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
PoE Inject Port | 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
LED Indicators | System: Power(Green) |
Port 1 to Port 16: | |
10/100 LNK/ACT (Green) | |
PoE-in-Use (Orange) | |
Switch Architecture | Store-and-Forward |
Address Table | 8K entries, automatic source address learning and aging |
Switch Fabric | 3.2Gbps/non-blocking |
Throughput (packet per second) | 2.38Mpps@64 bytes |
Power Requirements | AC 100~240V, 50/60Hz, 2A max. |
Power Consumption | Max. 133.3 watts/457.4 BTU |
Dimensions (W x D x H) | 445 x 207 x 45 mm |
Weight | 2330g |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
IEEE 802.3at Power over Ethernet Plus/PSE | |
PoE Power Supply Type | Mid-span |
PoE Power Output | Per port 52V DC ( max.30.8 watts) |
Power Pin Assignment | 4/5(+), 7/8(-) |
PoE Power Budget | 125 watts |
Standard Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standard Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) | |
Storage | Temperature: -10 ~ 70 degrees C |
Relative Humidity: 5 ~ 95% (non-condensing) |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilemez
PoE Port Sayısı : 16 Port
PoE Güç Bütçesi : 50-130 Watt
Çalışma Mesafesi : 100Mt.
