| Hardware Specification |
| Copper Ports |
16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port |
16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 |
| LED Indicators |
System: Power(Green) |
| Port 1 to Port 16: |
| 10/100 LNK/ACT (Green) |
| PoE-in-Use (Orange) |
| Switch Architecture |
Store-and-Forward |
| Address Table |
8K entries, automatic source address learning and aging |
| Switch Fabric |
3.2Gbps/non-blocking |
| Throughput (packet per second) |
2.38Mpps@64 bytes |
| Power Requirements |
AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption |
Max. 133.3 watts/457.4 BTU |
| Dimensions (W x D x H) |
445 x 207 x 45 mm |
| Weight |
2330g |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
Mid-span |
| PoE Power Output |
Per port 52V DC ( max.30.8 watts) |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Power Budget |
125 watts |
| Standard Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standard Compliance |
IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX |
| IEEE 802.3x flow control and back pressure |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information |

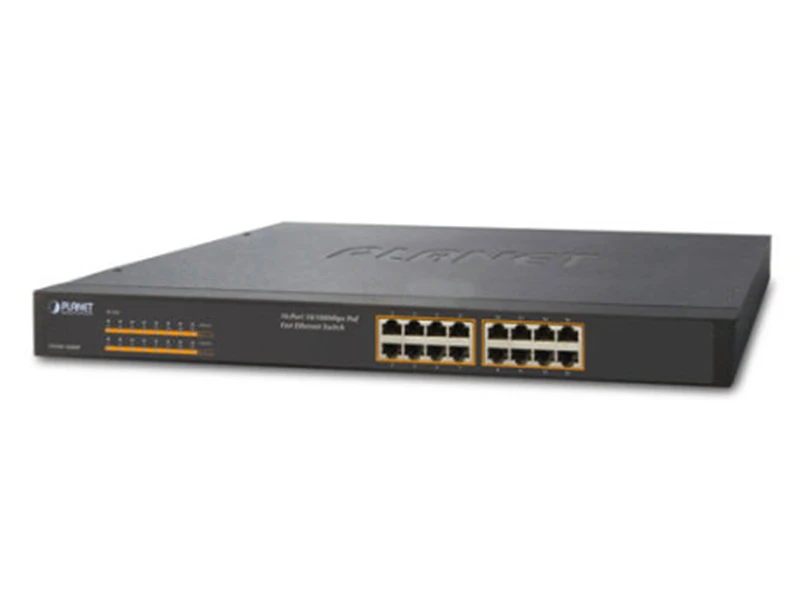

| PL-FNSW-1600P |
16-Port 10/100TX 802.3at PoE+ Ethernet Switch |
