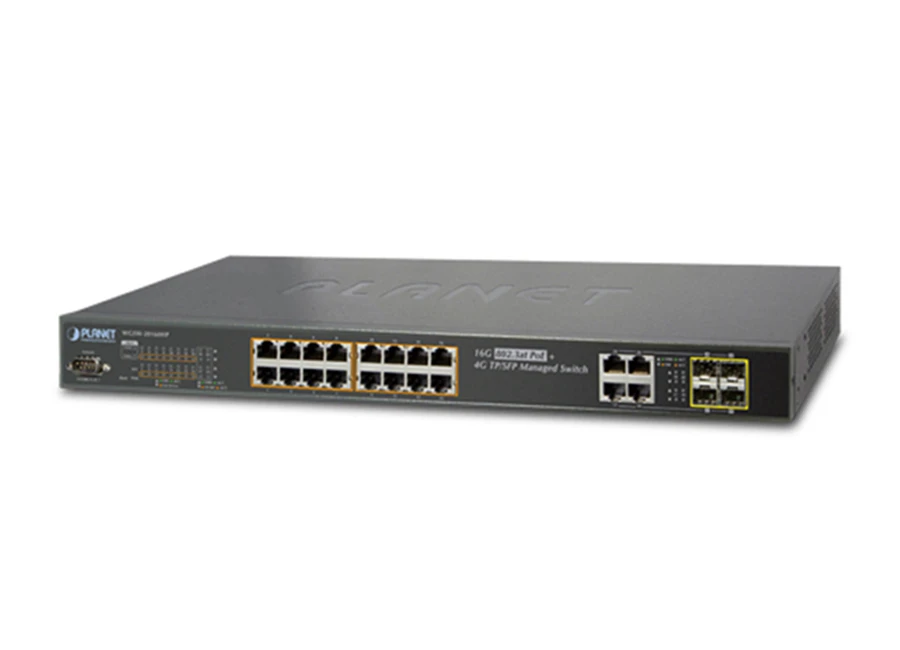

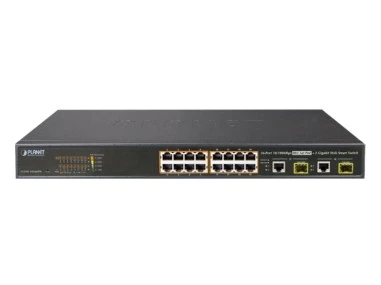

1000 PoE Switch

Özellikler

Physical Port

16-Port 10/100/1000Base-T RJ-45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000Mbps dual mode, shared with Port-17 to Port-20
RS-232 DB9 console interface for basic management and setup

Power over Ethernet

Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 16 ports of IEEE 802.3af / 802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management
Total PoE power budget control
Per port PoE function enable/disable
PoE Port Power feeding priority
Per PoE port power limit
PD classification detection
PD Alive-check
PoE schedule

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwiDTh
Storm Control support
Broadcast / Multicast / Unknown-Unicast
Supports VLAN
IEEE 802.1Q Tagged VLAN
Up to 255 VLANs groups, out of 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
Supports Spanning Tree Protocol
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (Static Trunk)
Maximum 10 trunk groups, up to 16 ports per trunk group
Up to 32Gbps bandwiDTh (Full Duplex Mode)
Provides Port Mirror (many-to-1)
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Quality of Service

Ingress Shaper and Egress Rate Limit per port bandwiDTh control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS / DSCP / IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwiDTh control on each port
Traffic-policing policies on the switch port
DSCP remarking
Multicast
Supports IGMP Snooping v1, v2 and v3
Supports MLD Snooping v1 and v2
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
Multicast VLAN Registration (MVR) support

Security

IEEE 802.1x Port-based / MAC-based network access authentication
Built-in RADIUS client to co-operate with the RADIUS servers
TACACS+ login users access authentication
RADIUS / TACACS+ users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC / IP aDTress binding
DHCP Snooping to filter untrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC aDTress to IP aDTress binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP aDTress access management to prevent unauthorized intruder

Management

Switch Management Interfaces
Console / Telnet Command Line Interface
Web switch management
SNMP v1, v2c, and v3 switch management
SSH / SSL secure access
Four RMON groups (history, statistics, alarms, and events)
IPv6 IP ADTress / NTP / DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP aDTress assignment
Firmware upload/download via HTTP / TFTP
DHCP Relay
DHCP Option82
User Privilege levels control
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deploy management
ICMPv6

Teknik Özellikler

Hardware Specification
Copper Ports	16 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
10/100/1000Mbps / SFP Combo Interfaces	4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000Mbps Dual mode, shared with Port-17 to Port-20
Console	1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	40Gbps / non-blocking
Throughput	29.7Mpps@64Bytes
Address Table	8K entries, automatic source address learning and ageing
Share Data Buffer	4 megabits
Flow Control	IEEE 802.3x Pause Frame for Full-Duplex
	Back pressure for Half-Duplex
Jumbo Frame	9Kbytes
Reset Button	< 5 sec: System reboot
	> 5 sec: Factory Default
Dimension (W x D x H)	440 x 300 x 44.5 mm, 1U high
Weight	4.1kg
LED	System:
	Power (Green), SYS (System, Green)
	Alert:
	FAN1 (Green), FAN2 (Green)
	PoE Ethernet Interfaces (Port 1 to Port 16):
	LNK/ACT (10/100/1000Mbps, Green), PoE In-Use (Orange)
	10/100/1000Base-T Combo Ports (Port 17 to port 20):
	1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange)
	100/1000Mbps SFP Combo Interfaces (Port 17 to Port 20):
	1000 (LNK/ACT, Green), 100 (LNK/ACT, Orange)
Power Requirement	100~240V AC, 50/60Hz, 2A
Power Consumption	Max 22 Watts / 75BTU
ESD Protection	6KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 56V DC
	Max. 30.8 Watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	230 Watts Max.
PoE Ability	Number of PD @ 7 Watts: 16
	Number of PD @ 15.4 Watts: 14
	Number of PD @ 30.8 Watts: 7
Layer 2 Management Function
Basic Management Interfaces	Console, Telnet, Web Browser, SNMP v1, v2c
Secure Management Interfaces	SSH, SSL, SNMP v3
Port Configuration	Port disable / enable
	Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX / RX / Both
	Many-to-1 monitor
VLAN	802.1Q Tagged based VLAN, up to 255 VLAN groups
	Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	MVR (Multicast VLAN Registration)
	Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP / static trunk
	Supports 10 groups of 16-port trunk support
QoS	Traffic classification based, strict priority and WRR
	8-Level priority for switching
	Port Number
	802.1p priority
	802.1Q VLAN tag
	DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
	IGMP querier mode support
MLD Snooping	MLD (v1/v2) Snooping, up to 255 multicast groups
	MLD querier mode support
Access Control List	IP-based ACL / MAC-based ACL
	Up to 256 entries
Bandwidth Control	Per port bandwidth control
	Ingress: 500Kb~80Mbps
	Egress: 64Kb~80Mbps
SNMP MIBs	RFC-1213 MIB-II
	IF-MIB
	RFC-1493 Bridge MIB
	RFC-1643 Ethernet MIB
	RFC-2863 Interface MIB
	RFC-2665 Ether-Like MIB
	RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
	RFC-2737 Entity MIB
	RFC-2618 RADIUS Client MIB
	RFC-2933 IGMP-STD-MIB
	RFC-3411 SNMP-Frameworks-MIB
	IEEE 802.1X PAE
	LLDP
	MAU-MIB
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX/100Base-FX
	IEEE 802.3z 1000Base-SX/LX
	IEEE 802.3ab 1000Base-T
	IEEE 802.3x Flow Control and Back pressure
	IEEE 802.3ad Port trunk with LACP
	IEEE 802.1D Spanning tree protocol
	IEEE 802.1w Rapid spanning tree protocol
	IEEE 802.1s Multiple spanning tree protocol
	IEEE 802.1p Class of service
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet PLUS
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP version 1
	RFC 2236 IGMP version 2
	RFC 3376 IGMP version 3
	RFC 2710 MLD version 1
	FRC 3810 MLD version 2
Environment
Operating	Temperature:	0 ~ 50 degrees C
	Relative Humidity:	5 ~ 95% (non-condensing)
Storage	Temperature:	-10 ~ 70 degrees C
	Relative Humidity:	5 ~ 95% (non-condensing)
