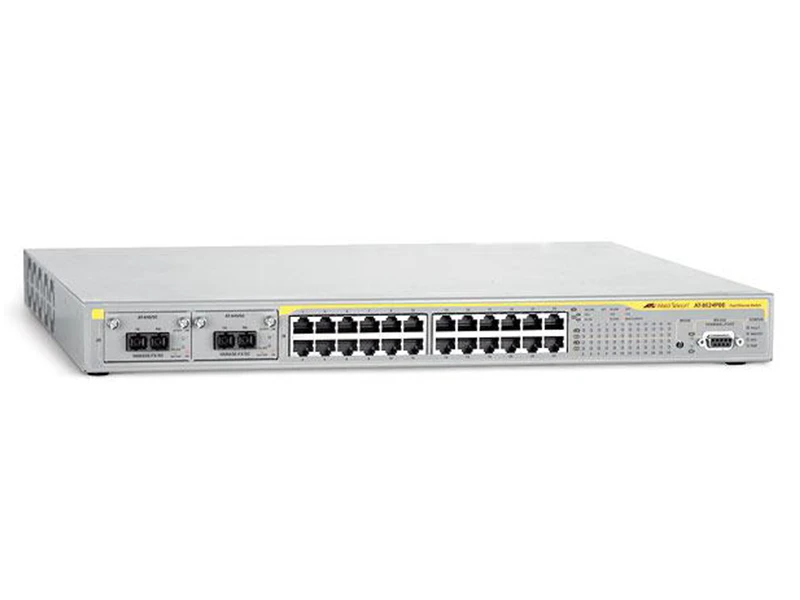

Allied Telesis AT 8624POE V2 10/100 PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Fast Ethernet |
| Ports |
| 24 x 10/100 (PoE) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE |
| Authentication Method |
| Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH), TACACS, TACACS+, X.509 certificates |
| Flash Memory |
| 8 MB flash |
| MAC Address Table Size |
| 8K entries |
| Authentication Method |
| Secure Shell (SSH), RADIUS, X.509 certificates, TACACS, TACACS+, Extensible Authentication Protocol (EAP) |
| Power Over Ethernet (PoE) |
| PoE |
| Encryption Algorithm |
| DES, RSA, SSL, SHA-1, TLS 1.0, PKI |
| Routing Protocol |
| RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM |
| Manufacturer |
| Allied Telesyn |
| Camera |
| Installed Size |
| 8 MB |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Type |
| internal power supply |
| Networking |
| Cabling Type |
| Ethernet 100Base-TX, Ethernet 10Base-T |
| MAC Address Table Size |
| 8K entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Fast Ethernet |
| Form Factor |
| desktop |
| Type |
| switch |
| Stackable |
| stackable |
| Connectivity Technology |
| wired |
| Advanced Switching |
| Layer 3 |
| Features |
| ARP support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RARP support, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Weighted Round Robin (WRR) |
| queuing, full duplex capability, layer 2 switching, BOOTP support, layer 3 switching, port mirroring, trunking, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, DoS attack prevention, IGMP snooping, MLD snooping |
| Compliant Standards |
| IEEE 802.1D, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab |
| Ports Qty |
| 24 |
| Manageable |
| Yes |
| Routing Protocol |
| IGMPv2, OSPFv2, PIM-DM, PIM-SM, RIP-1, RIP-2, VRRP, static IP routing |
| Switching Protocol |
| Ethernet |
| Remote Management Protocol |
| HTTP, SSH, Telnet, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3 |
| Communication Mode |
| full-duplex, half-duplex |
| Power Over Ethernet (PoE) |
| PoE |
| Interface Provided |
| Qty |
| 1, 2, 2, 24 |
| Connector Type |
| SFP (mini-GBIC) |
| Comments |
| PoE, management |
| Miscellaneous |
| Encryption Algorithm |
| DES, PKI, RSA, SHA-1, SSL, TLS 1.0 |
| MTBF |
| 180250 sec |
| Height (Rack Units) |
| 1 m |
| Processor |
| Type |
| PowerPC |
| Installed Qty |
| 1 |
| Clock Speed |
| 200 MHz |
| Environmental Parameters |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 104 °F |
| Humidity Range Operating |
| 5 - 80% |
| Header |
| Brand |
| Allied Telesis |
| Product Line |
| Allied Telesis AT |
| Model |
| 8624POE-V2 |
| Country Kits |
| United Kingdom |
| Packaged Quantity |
| 1 |
| Compatibility |
| PC |
| Dimensions & Weight |
| Depth |
| 16 in |
| Width |
| 17.2 in |
| Height |
| 1.7 in |
| Weight |
| 13.67 lbs |
| Expansion Slots |
| Type |
| expansion slot |
| Total Qty |
| 2 |
| Ports |
| Type |
| 10/100 (PoE) |
| Qty |
| 24 |
| Ports (2nd) |
| Type |
| combo Gigabit SFP |
| Qty |
| 2 |
| Slot Required |
| Type |
| none |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
