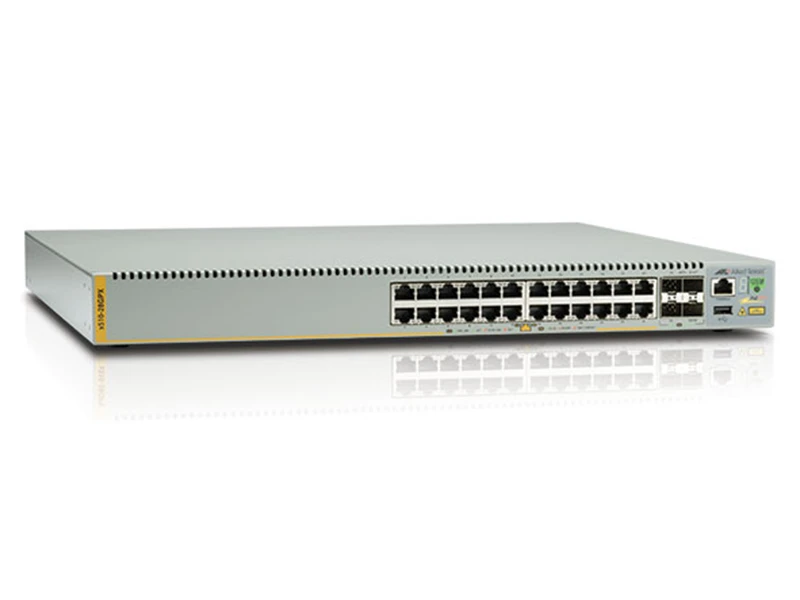

Allied Telesis AT x510 28GPX 10/100/1000 PoE Plus Switch
Teknik Özellikler
| Product Description |
| Allied Telesis AT X510-28GPX - switch - 24 ports - managed - rack-mountable |
| Device Type |
| Switch - 24 ports - L2+ - managed - stackable |
| Enclosure Type |
| Rack-mountable 1U |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 12 x 10/100/1000 (PoE) + 12 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 740 W |
| Performance |
| Switching capacity |
| 128 Gbps |
| Forwarding performance |
| 95.2 Mpps |
| Stacking bandwidth |
| 40 Gbps |
| Capacity |
| MAC addresses |
| up to 16000 |
| Virtual interfaces (VLANs) |
| 4094 |
| IPv4 routes |
| up to 2000 |
| IPv6 routes |
| up to 1000 |
| MAC Address Table Size |
| 16K entries |
| Jumbo Frame Support |
| 13KB |
| Routing Protocol |
| IGMPv2, IGMPv3, ECMP, policy-based routing (PBR), VRRPv3 |
| Remote Management Protocol |
| SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI |
| Features |
| Flow control, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, firmware upgradable, Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Network Admissions Control (NAC), Jumbo Frames support, Dynamic ARP Inspection (DAI), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), Equal-Cost Multipath (ECMP), STP Root Guard, LACP support, LLDP support, SNMP trap, DNS relay, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP), loop prevention, enviromental monitoring, Ingress Layer 2 MAC Access Control Lists (ACLs), tagged VLAN, 4MB packet buffer |
| Compliant Standards |
| IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, |
| IEEE 802.3az, IEEE 802.1AX |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy |
| Yes |
| Dimensions (WxDxH) |
| 44 cm x 32 cm x 4.4 cm |
| Weight |
| 5.6 kg |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : 10Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 400-800 Watt
Montaj Tipi : Rack Mount
