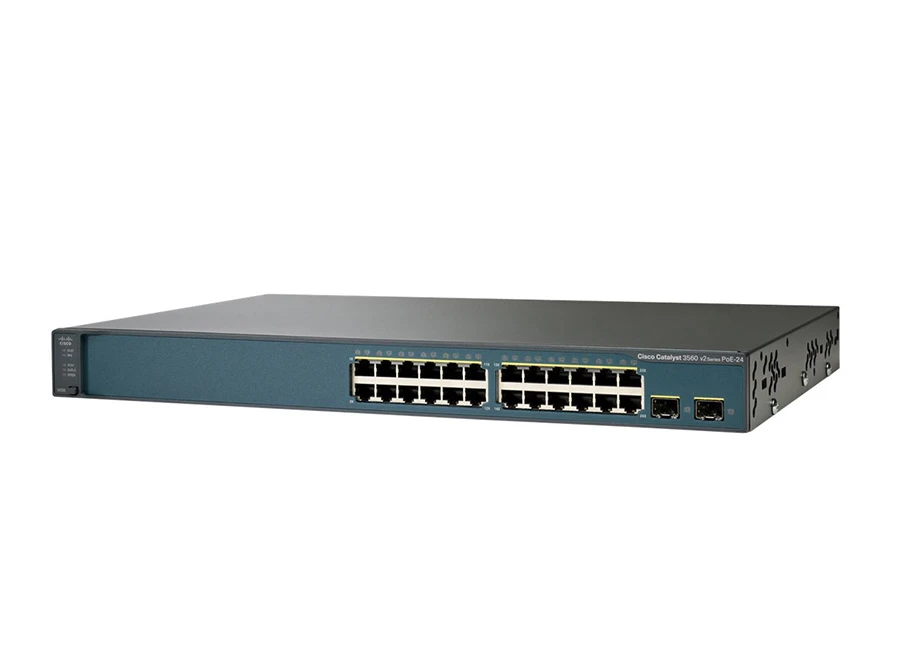

Cisco Catalyst 3560V2 24PS PoE Switch

Teknik Özellikler

General
Device Type	Switch - 24 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Subtype	Fast Ethernet
Ports	24 x 10/100 (PoE) + 2 x SFP
Power Over Ethernet (PoE)	PoE
MAC Address Table Size	12K entries
Routing Protocol	OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, policy-based routing (PBR)
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, event log, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory	32 MB flash
Status Indicators	Port status, port transmission speed, port duplex mode, status, link/activity
Expansion / Connectivity
Interfaces	24 x 100Base-TX RJ-45 PoE
	1 x console RJ-45 management
	2 x SFP (mini-GBIC)
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	435 Watt
Features	Redundant Power System (RPS) connector
Miscellaneous
MTBF	275,360 hours
Compliant Standards	FCC Class A certified, CISPR 22 Class A, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CSA 22.2 No. 60950, EMC, FCC Part 15, UL 60950-1, IEC 60950-1
Software / System Requirements
Software Included	Cisco IOS IP Services
Dimensions & Weight
Width	17.4 in
Depth	11.6 in
Height	1.7 in
Weight	10.14 lbs
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	10 - 85%
