Açıklama

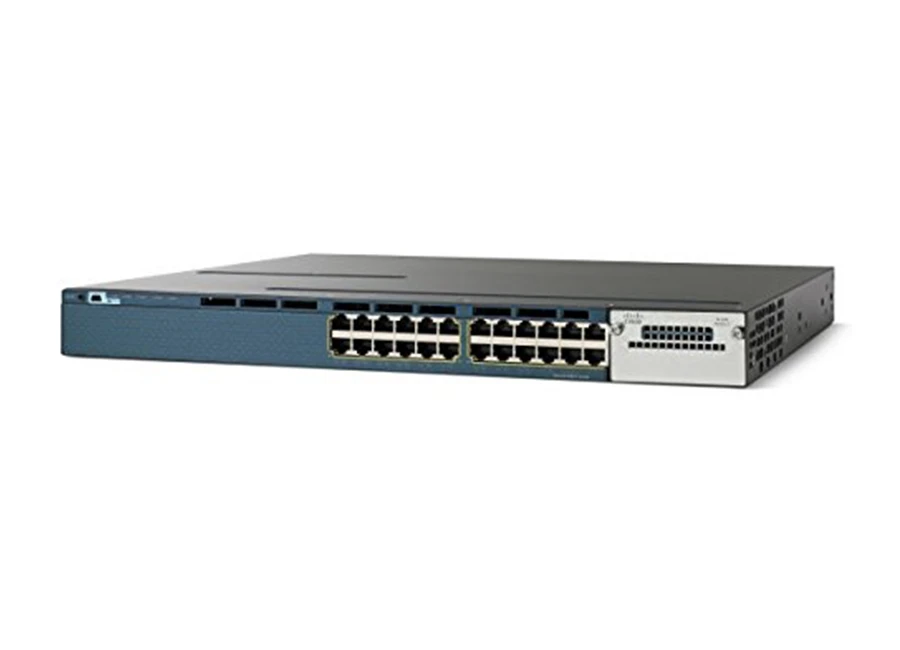

Cisco Catalyst 3560X 24P L PoE Switch

Özellikler

24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
435W POE power budget with up to 30W per port
Dual redundant, modular power supplies and fans
LAN base feature set with upgrade option to IP base or IP service
Layer 2 switching with static routing and SVI supporting
64MB flash and 256 memory (DRAM)
USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Teknik Özellikler

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	WS-C3560X-24P-L
Product Type	Switch - 24 ports - Managed
Form Factor	Rack mountable - 1U
Switch Ports	24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE)	Yes
Performance	Switching capacity : 160 Gbps
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
DRAM Memory	256 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
	USB : 1 x 4 PIN USB Type A
	1 x console - mini-USB Type B - management
	1 x RS-232 - RJ-45 - management
	1 x 10Base-T/100Base-TX - RJ-45 - management
Expansion Slots Total (Free)	1 ( 1 ) x Expansion Slot
Power Supply
Power Device	Power supply - redundant - plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width	44.5 cm
Depth	46 cm
Height	4.5 cm
Weight	7.1 kg
Rack Mounting Kit	Optional
MTBF	181,370 hour(s)
Compliant Standards	CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included	Cisco IOS LAN Base
