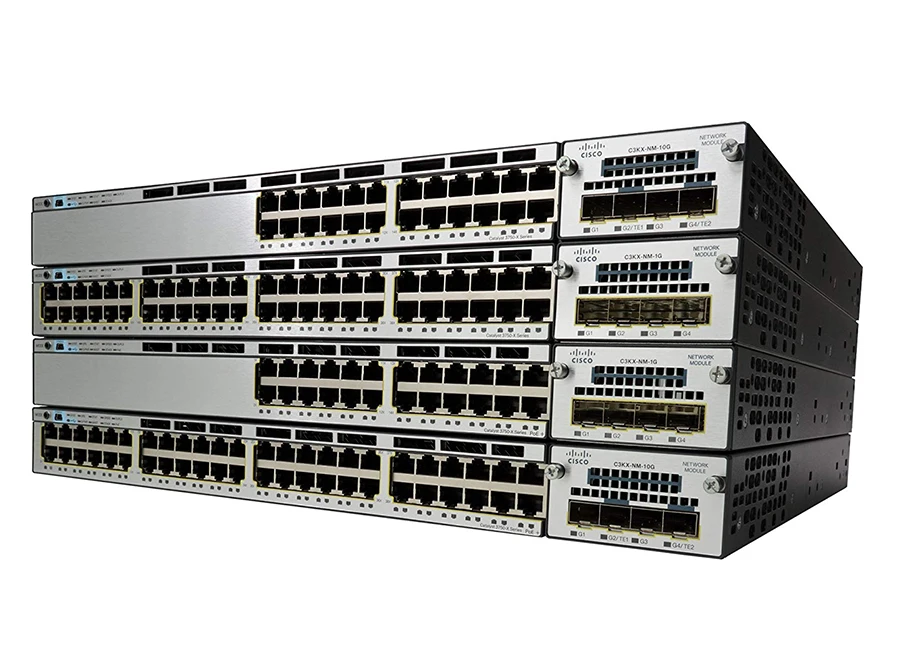

Cisco Catalyst 3560X 24U S PoE Switch

Teknik Özellikler

Product Name Catalyst 3750X 24 PT Upoe IP Base
Manufacturer Part Number WS-C3750X-24U-S
Product Line Catalyst
Product Series 3750-X
Product Model 3560X-24U
Product Type Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports 24
Modular Yes
Stack Port Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet Network
4 x Expansion Slot
I/O Expansions
Number of Total Expansion Slots 4
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network & Communication
Layer Supported 3
Power Description
Power Source Power Supply
Redundant Power Supply Supported Yes
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 19.5"
Warranty
Limited Warranty Lifetime
Other Information
Product Family Catalyst 3750-X
PoE (RJ-45) Port No
Twisted Pair Cable Standard Category 5e
Token Ring Port No
LRE Port No
USB Yes
Management Port Yes
Bypass No
Number of UPOE (RJ-45) Ports 24
Memory Technology DRAM
MTBF 238070 Hour
System Requirements PC with Windows Vista, XP, or 2000
Browser (Internet Explorer 5.5, 6.0, 7.0, Firefox 1.5, 2.0, 3.0 or later) with JavaScript enabled
Straight-through or crossover Category 5 Ethernet cable
Flash Memory 64 MB
Input Voltage 110 V AC
220 V AC
Standard Memory 256 MB
Stock Details
Manufacturer Cisco Systems
Manuf Part# WS-C3750X-24U-S

pdfCisco Catalyst 3560X 24U S PoE Switch Pdf Dosyası502.52 KB

Teknik Kısa

PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 800 Watt >
