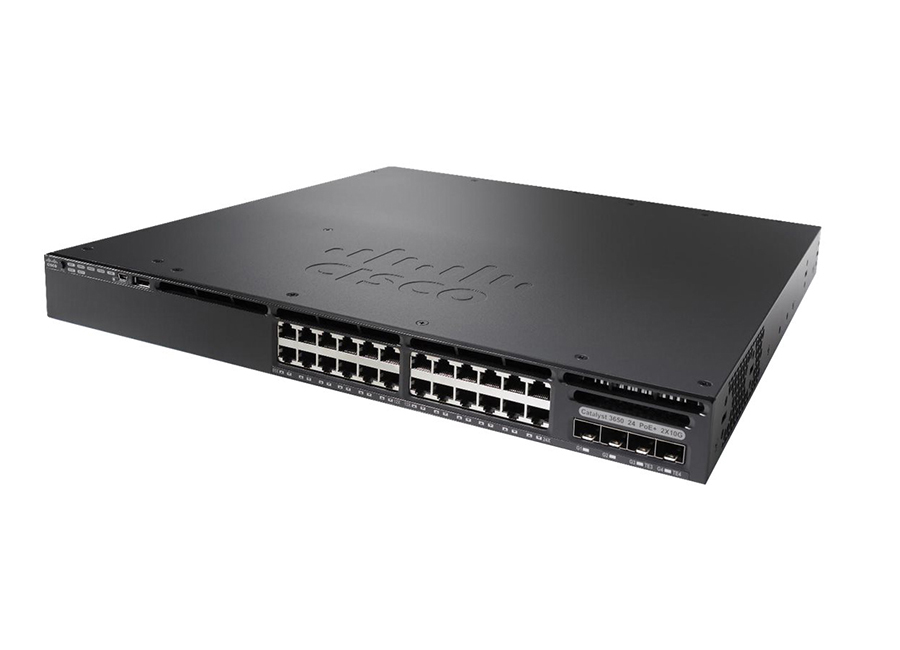

Cisco Catalyst 3650 8X24PD L PoE Switch

Özellikler

24 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
Single universal Cisco IOS software image across all license levels, providing an easy upgrade path for software features
Specifications
What's in the Box
Cisco Catalyst 3650-8X24PD-L
Rack mounting kit

Teknik Özellikler

General
Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10G (PoE+) + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
Performance	Switching capacity: 272 Gbps Forwarding performance: 202.38 Mpps Stacking bandwidth: 160 Gbps
Capacity	IPv4 routes: 24000 NetFlow entries: 24000 Virtual interfaces (VLANs): 4094 Switched virtual interfaces (SVIs): 1000 IPv4 routes: 24000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM	4 GB
Flash Memory	4 GB
Status Indicators	Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
Interfaces	16 x 1000Base-T RJ-45 PoE+ 1 x USB Type A 1 x serial (console) RJ-45 management 1 x management (Gigabit LAN) RJ-45 management 1 x management (mini-USB) Type B management 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE+ 2 x 10GBase-X SFP+ uplink
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Power
Power Device	Internal power supply - hot-plug
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit	Included
MTBF	233,780 hours
Compliant Standards	CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
Software Included	Cisco IOS LAN Base
Dimensions & Weight
Width	17.5 in
Depth	19.1 in
Height	1.7 in
Weight	16.53 lbs
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Technical support - phone consulting - 90 days
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 96% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
General
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity	IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Features	Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Flash Memory	4 GB
Jumbo Frame Support	9198 bytes
MAC Address Table Size	32000 entries
Performance	Switching capacity: 272 Gbps ¦ Forwarding performance: 202.38 Mpps ¦ Stacking bandwidth: 160 Gbps
Ports	16 x 10/100/1000 (PoE+) + 8 x 100/1000/2.5G/5G/10G (PoE+) + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
RAM	4 GB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Status Indicators	Port transmission speed, port duplex mode, system, active, status, PoE
Subtype	Gigabit Ethernet
Dimensions & Weight
Depth	19.1 in
Height	1.7 in
Weight	16.53 lbs
Width	17.5 in
Environmental Parameters
Humidity Range Operating	5 - 96% (non-condensing)
Max Operating Temperature	113 °F
Max Storage Temperature	158 °F
Min Operating Temperature	23 °F
Min Storage Temperature	-40 °F
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Interfaces	16 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-X SFP+ uplink
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Miscellaneous
Compliant Standards	CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
MTBF	233,780 hours
Rack Mounting Kit	Included
Power
Installed Qty	1 (installed) / 2 (max)
Power Device	Internal power supply - hot-plug
Power Provided	715 Watt
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included	Cisco IOS LAN Base
