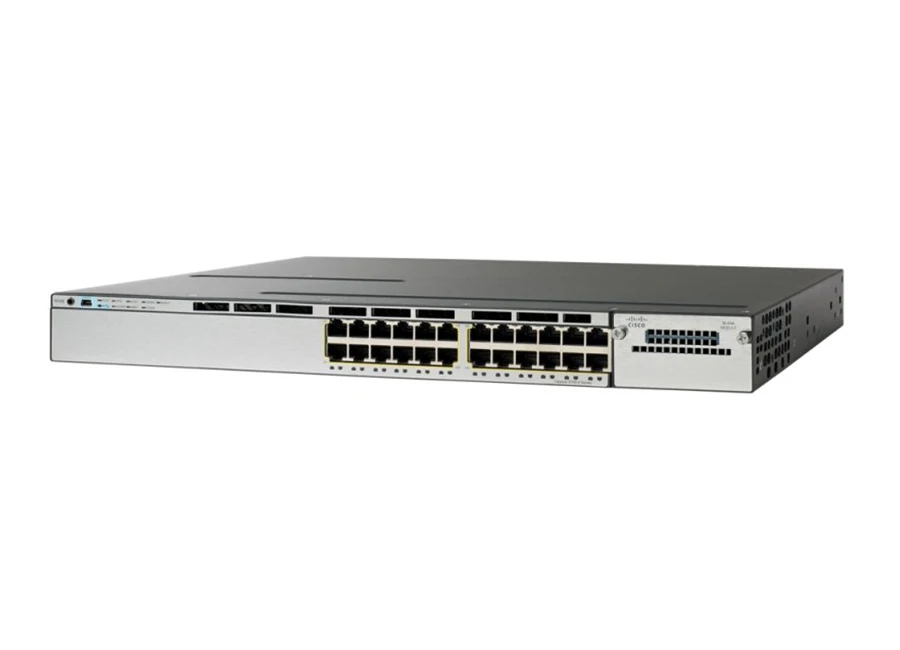

Cisco Catalyst 3750X 24P S PoE Switch
Özellikler
- Stackable 24 10/100/1000 Ethernet ports
- Four optional uplink network modules with GE or 10GE ports
- Industry first PoE+ with 30W power on all ports in 1 rack unit (RU) form factor
- Dual redundant, modular power supplies and fans
- Media Access Control Security (MACsec) hardware-based encryption
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
- StackWise Plus
- Cisco StackPowerTM technology: An innovative feature and industry first for sharing power among stack members
- Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput
- Investment protection with backward compatibility with all other models of Cisco Catalyst 3750 Series Switches
Teknik Özellikler
WS-C3750X-24P-S | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | WS-C3750X-24P-S |
Product Type | Switch - 24 ports - L3 - Managed - stackable |
Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
Switch Port density - Uplinks | 24 x 10/100/1000 Ethernet Ports |
Power Over Ethernet (PoE) | Yes |
Max Number of Stacks | 9 |
Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
DRAM Memory | 256 MB |
Flash Memory | 128 MB Flash |
LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
Connectivity / Expansion Slots | |
Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE |
USB : 1 x 4 PIN USB Type A | |
1 x console - mini-USB Type B - management | |
1 x RS-232 - RJ-45 - management | |
1 x 10Base-T/100Base-TX - RJ-45 - management | |
Network stack device : 2 x | |
Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
Power Supply Specifications | |
Power Device | Power supply - redundant - plug-in module |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Features | Redundant Power System (RPS) connector |
Dimensions / Weight / Miscellaneous | |
Width | 44.5 cm |
Depth | 46 cm |
Height | 4.5 cm |
Weight | 7.2 kg |
Rack Mounting Kit | Optional |
MTBF | 167,198 hour(s) |
Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
System Software | |
Software Included | Cisco IOS IP Base |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 400-800 Watt
