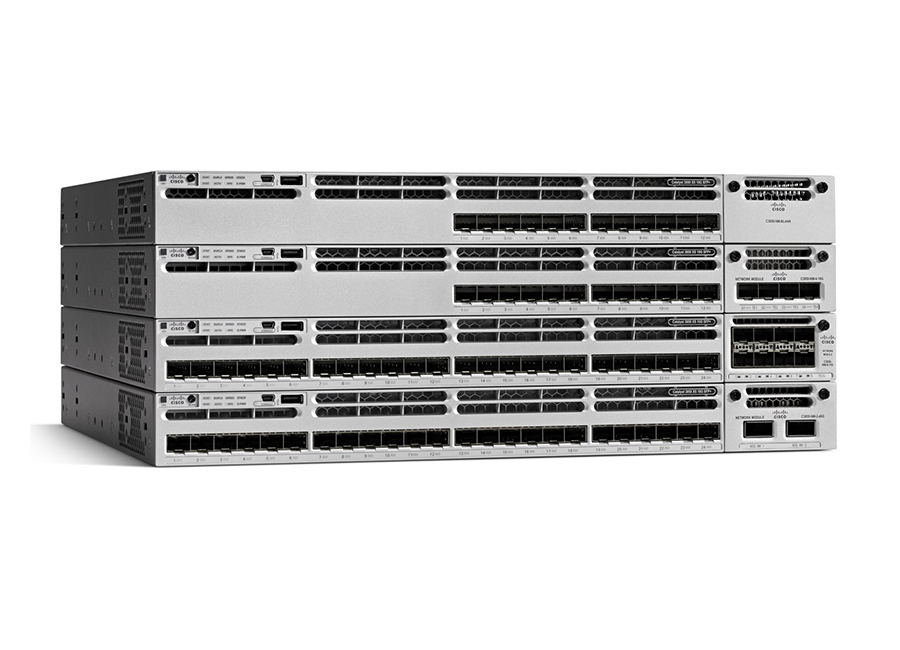

Cisco Catalyst 3850 24PW S PoE Switch

Teknik Özellikler

Cisco Catalyst 3850-24PW-S - switch - 24 ports - Managed - rack-mountable
Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
Performance Switching capacity: 88 Gbps ¦ Stacking bandwidth: 480 Gbps
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Manageable access points: 5
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 45 cm x 4.45 cm
Weight 7.4 kg
Manufacturer Warranty Limited lifetime warranty
Extended Specification
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Manageable access points: 5
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Desktop, rack-mountable 1U
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Flash Memory 2 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32000 entries
Performance Switching capacity: 88 Gbps ¦ Stacking bandwidth: 480 Gbps
Ports 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE) PoE+
RAM 4 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Status Indicators Port transmission speed, port duplex mode, system, status, PoE
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 45 cm
Height 4.45 cm
Weight 7.4 kg
Width 44.5 cm
Environmental Parameters
Humidity Range Operating 10 - 95% (non-condensing)
Max Operating Temperature 45 °C
Max Storage Temperature 70 °C
Min Operating Temperature -5 °C
Min Storage Temperature -40 °C
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x Expansion Slot
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE+ ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management ¦ 2 x network stack device
Manufacturer Warranty
Service & Support Limited warranty - lifetime ¦ Technical support - consulting - 90 days
Miscellaneous
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
MTBF 269,450 hours
Power
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply
Power Provided 715 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included Cisco IOS IP Base

pdfCisco Catalyst 3850 24PW S PoE Switch Pdf Dosyası1.76 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı : Tooltip 24 Port
