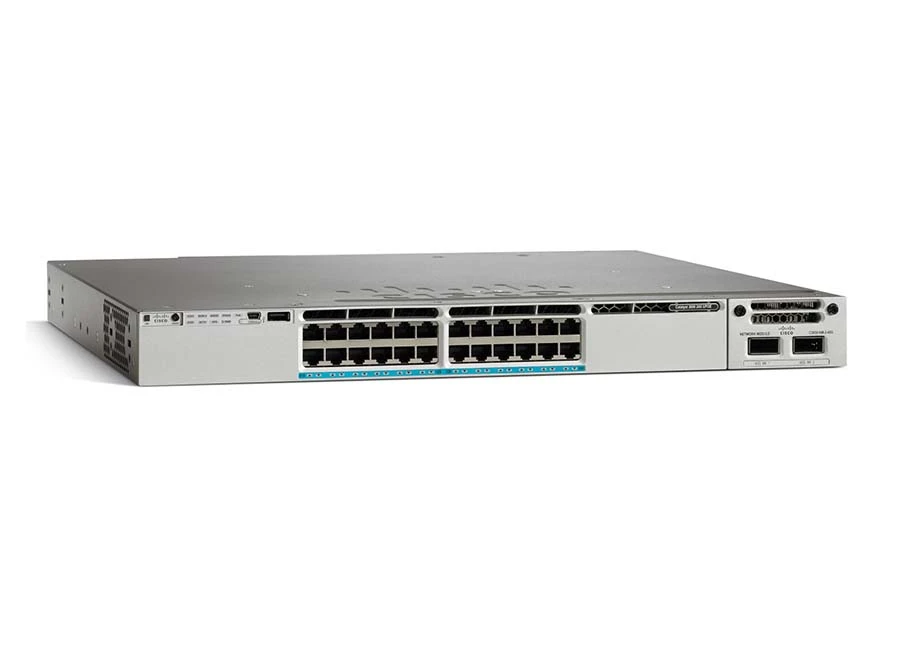

Cisco Catalyst 3850 24U E PoE Switch
Teknik Özellikler
| WS-C3850-24U-E | |
| model info: | WS-C3850-24U-E |
| enclosure type | Rack-mountable - 1U |
| Ports | Stackable 24 10/100/1000 Cisco UPOE ports |
| Network management Interface | - Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
| - Management console port: RJ-45-to-DB9 cable for PC connections | |
| Available PoE Power | 800W |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | C3850-NM-4-1G |
| C3850-NM-2-10G | |
| Stacking cable | -STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
| -STACK-T1-1M StackWise stacking cable with a 1.0 m length | |
| -STACK-T1-3M StackWise stacking cable with a 3.0 m length | |
| Stack Power Cable (recommended) | -CAB-SPWR-30CM stack power cable with a 30CM length |
| -CAB-SPWR-150CM stack power cable with a 150CM length | |
| Power supply | PWR-C1-1100WAC/2= |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 84.97 (max) |
| Miscellaneous | |
| Dimensions (H x W x D) | 1.75 x 17.5 x 19.2 inch; 4.45 x 44.5 x 48.8 cm |
| Rack Mounting Kit | optional |
| MTBF in hours | 237,31 |
| Technical Support and Services | - Cisco SMARTnet Service - Cisco Smart Foundation Service - Cisco SP Base Service - Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 400-800 Watt
