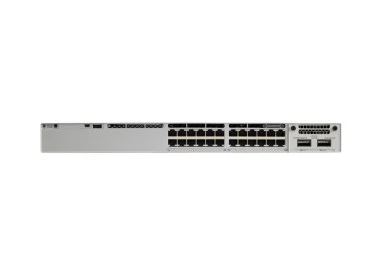

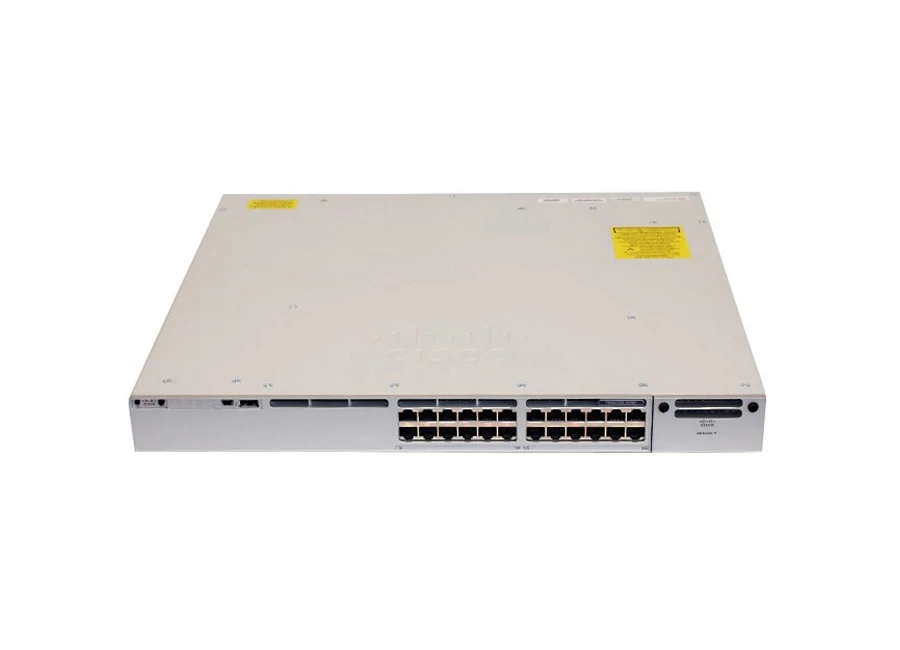

Cisco Catalyst 9300 24P A PoE Switch
Teknik Özellikler
C9300-24P-A | |
Part Number | C9300-24P-A |
Product Description | Catalyst 9300 48-port PoE+, Network Advantage |
Total 10/100/1000 or Multigigabit copper ports | 24 POE+ |
Default AC power supply | 715W AC |
Available PoE power | 445W |
Cisco StackWise-480 | Yes |
Cisco StackPower | Yes |
Default power supply | PWR-C1-715WAC |
Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
Stacking bandwidth | 480 Gbps |
Total number of MAC addresses | 32 |
Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
IPv4 routing entries | 32 |
IPv6 routing entries | 16 |
Multicast routing scale | 8000 |
QoS scale entries | 5120 |
ACL scale entries | 5120 |
Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
DRAM | 8 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 2000 |
Jumbo frames | 9198 bytes |
Total routed ports per 9300 Series stack | 208 |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
Forwarding rate | 154.76 Mpps |
Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
Weight | 16.33 Pounds |
Mean time between failures (hours) | 299 |
Safety certifications | - UL 60950-1 |
- CAN/CSA-C222.2 No. 60950-1 | |
- EN 60950-1 | |
- IEC 60950-1 | |
- AS/NZS 60950.1 | |
- IEEE 802.3 | |
Electromagnetic emissions certifications | - 47 CFR Part 15 |
- CISPR22 Class A | |
- EN 300 386 V1.6.1 | |
- EN 55022 Class A | |
- EN 55032 Class A | |
- CISPR 32 Class A | |
- EN61000-3-2 | |
- EN61000-3-3 | |
- ICES-003 Class A | |
- TCVN 7189 Class A | |
- V-3 Class A | |
- CISPR24 | |
- EN 300 386 | |
- EN55024 | |
- TCVN 7317 | |
Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 1 Port
PoE Güç Bütçesi : 400-800 Watt
