Açıklama

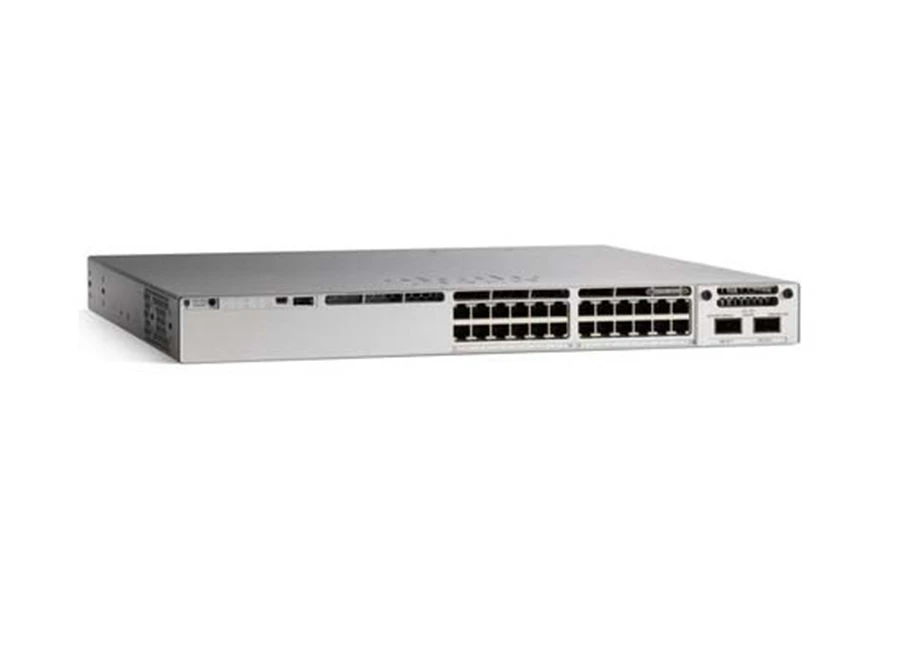

Cisco Catalyst 9300 24U A PoE Switch

Teknik Özellikler

C9300-24U-A
Part Number	C9300-24U-A
Product Description	Catalyst 9300 24-port UPOE, Network Advantage
Total 10/100/1000 or Multigigabit copper ports	24 Cisco UPOE
Default AC power supply	1100W AC
Available PoE power	830W
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-1100WAC
Switching capacity	208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32
IPv6 routing entries	16
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299
Safety certifications	- UL 60950-1
	- CAN/CSA-C222.2 No. 60950-1
	- EN 60950-1
	- IEC 60950-1
	- AS/NZS 60950.1
	- IEEE 802.3
Electromagnetic emissions certifications	- 47 CFR Part 15
	- CISPR22 Class A
	- EN 300 386 V1.6.1
	- EN 55022 Class A
	- EN 55032 Class A
	- CISPR 32 Class A
	- EN61000-3-2
	- EN61000-3-3
	- ICES-003 Class A
	- TCVN 7189 Class A
	- V-3 Class A
	- CISPR24
	- EN 300 386
	- EN55024
	- TCVN 7317
Environmental	Reduction of Hazardous Substances (ROHS) 5
