Açıklama

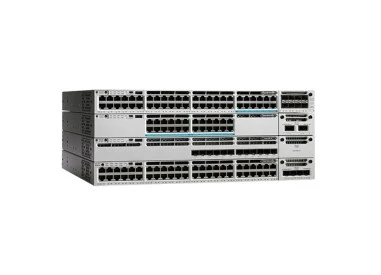

Cisco Catalyst C9200-24PB-A PoE Switch

Ürün Açıklaması: Catalyst 9200 24-port PoE+, enhanced VRF, Network Advantage
Ürün Kodu: C9200-24PB-A
Cihaz Tipi: 9200 Serisi 24-Port Full PoE+ Modüler Uplink Enhanced VRF Switch
Güç Kaynağı: PWR-C6-600WAC (default)
Max PoE Gücü: 740W (İkinci güç kaynağı ile)
DNA Lisansı: (En az bir tanesi Zorunlu) C9200-DNA-A-24-3Y, C9200-DNA-A-24-5Y, C9200-DNA-A-24-7Y
Yığınlama Modülü: C9200-STACK-KIT
Desteklenen Uplink: C9200-NM-4X1G, C9200-NM-4X10G
Muhafaza Biçimi: Rafa monte 1U, Desktop
Performans Kapasitesi: 288 Gbps switching kapasitesi, 214 Mpps forwarding kapasitesi
Özellikler: 24 x Gigabit PoE+ Ethernet Port, Modüler uplink, 4096 VLAN kapasitesi, Stackwise-160, 32 Sanal Ağ, 32000 MAC Addresses, 14000 IPv4 routes, 4000 IPv4 routing entries, 2000 IPv6 routing entries, 1000 Multicast routing scale, 1000 QoS scale entries, 1600 ACL scale entries, 16000 flows Flexible NetFlow (FNF) entries, 4 GB DRAM, 4 GB Flash, 1000 SVIs, 9198 bytes Jumbo frames, Up to 48 Gbps Wireless bandwidth per switch, Routed Access (RIP, EIGRP Stub, OSPF – 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder,SSO, EIGRP, HSRP, IS-IS, BSR, MSDP, IP SLA, OSPF, VRF, VXLAN, LISP, SGT, NETCONF, RESTCONF, YANG, PnP Agent, PnP, Model-driven telemetry, sampled NetFlow, SPAN, RSPAN, MACsec-128
