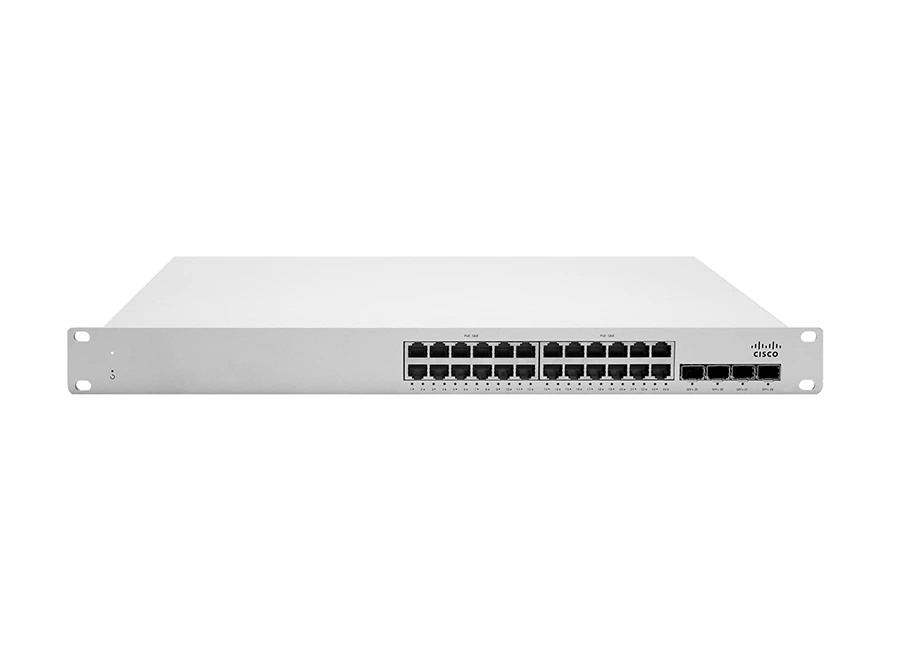

Cisco Meraki MS210 24P HW PoE Switch
Teknik Özellikler
| MS210-24P-HW | |
| Interfaces | - 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) |
| - 4 x 1GbE SFP uplink | |
| - 2 x stacking ports | |
| - RJ45 Management port | |
| Forwarding rate | 41.67mpps |
| Switching capacity | 128 Gbps |
| Stacking Bandwidth | 80G (dual interface) |
| Available PoE+ Power | 370 W |
| Idle / Full Load Power | 21 / 448 W |
| Power Supply Configuration | Fixed internal |
| Supported Power Supply | External RPS |
| What’s included | Mounting screw kit |
| Dimensions | 1.72 x 19.08 x 9.84” (4.38 x 48.46 x 25cm) |
| Weight | 8.18 lb (3.71 kg) |
| Management | - Managed via the Web with the Meraki cloud management platform |
| - Integrated with Meraki Wireless and complete portfolio of IT products and solutions | |
| - Zero-touch remote provisioning (no staging needed) | |
| - Detailed historical per-port and per-client usage statistics | |
| - DHCP, client, and hostname fingerprinting | |
| - SNMPd and SYSLOG support for integration with other network management solutions | |
| - Automatic firmware upgrades with scheduling control | |
| Layer 3 | - Static routing |
| - DHCP Relay | |
| Remote Diagnostics | - Email, SMS and Mobile push notification alerts |
| - Cable testing and link failure detection with alerting | |
| - Live remote packet capture | |
| - Dynamic and interactive network discovery and topology | |
| - Combined event and configuration change logs with instant search | |
| Power | - Power input: 100 - 240 VAC, 47-63 Hz |
| - Power consumption: 15 - 882W | |
| - RPS interface: Requires RPS-2300 chassis | |
| Stacking | - Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models |
| - Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration | |
| - Stacking-compatible with the MS225 | |
| Ethernet Switching Capabilities | - 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) |
| - 802.1Q VLAN and trunking support for up to 4,094 VLANs | |
| - 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) | |
| - Broadcast storm control | |
| - 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) | |
| - 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches | |
| - Port mirroring | |
| - IGMP snooping for multicast filtering | |
| - MAC forwarding entries: 16K | |
| Environment | - Operating temperature: -5°C to 50°C |
| - Humidity: 5 to 95% non-condensing | |
| Regulatory | - CSA-US (US, Canada) |
| - FCC (USA) | |
| - IC (Canada) | |
| - CE (Europe) | |
| - RoHS | |
| - RCM (Australia/New Zealand) | |
| Mounting | - Rack-mountable with included rack mount hardware |
| - Front-to-back airflow | |
| - Feature fanless operation | |
| Security | - Integrated two-factor authentication for Dashboard management |
| - Role-based access control (RBAC) with granular device and configuration control | |
| - Corporate wide password policy enforcement | |
| - IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing | |
| - Multi-Domain/Multi-Host/Multi Authentication | |
| - Port security: Sticky MAC, MAC whitelisting | |
| - DHCP snooping, detection and blocking, Dynamic ARP Inspection | |
| - STP Enhancements: BPDU guard, Root guard, Loop guard | |
| - IPv4 and IPv6 ACLs | |
| MTBF Ratings | 391,648 |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
