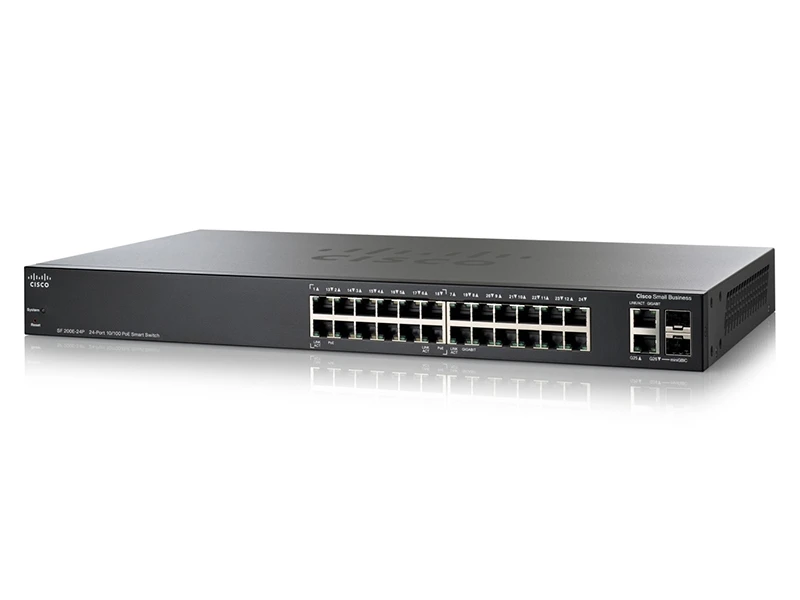

Cisco SF200E 24P EU 10/100 Gigabit PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Fast Ethernet |
| Ports |
| 12 x 10/100 (PoE) + 12 x 10/100 + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE |
| Authentication Method |
| RADIUS |
| RAM |
| 32 MB |
| Flash Memory |
| 8 MB |
| MAC Address Table Size |
| 8000 entries |
| Authentication Method |
| RADIUS |
| Power Over Ethernet (PoE) |
| PoE |
| Status Indicators |
| Port transmission speed, system, PoE, link/activity |
| Manufacturer |
| Cisco |
| Networking |
| MAC Address Table Size |
| 8000 entries |
| Subcategory |
| network hubs and switches |
| Subtype |
| Fast Ethernet |
| Form Factor |
| desktop, rack-mountable |
| Type |
| switch |
| Features |
| BOOTP support, Broadcast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, VLAN support, DHCP support, Weighted Round Robin (WRR) queuing, firmware upgradable, flow control, layer 2 switching, port mirroring, reset button, DiffServ support, IGMP snooping, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), MLD snooping, Multicast Storm Control |
| Compliant Standards |
| IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af |
| Ports Qty |
| 24 |
| Manageable |
| Yes |
| Remote Management Protocol |
| CLI, HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet |
| Power Over Ethernet (PoE) |
| PoE |
| Power Device |
| Nominal Voltage |
| AC 120/230 V |
| Frequency Required |
| 50/60 Hz |
| Type |
| internal power supply |
| Camera |
| Installed Size |
| 8 MB |
| Interface Provided |
| Qty |
| 12, 2 |
| Connector Type |
| SFP (mini-GBIC) |
| Comments |
| PoE |
| Miscellaneous |
| MTBF |
| 735718 sec |
| Height (Rack Units) |
| 1 m |
| Mounting Kit |
| included |
| RAM |
| Installed Size |
| 32 MB |
| Environmental Parameters |
| Humidity Range Storage |
| 10 - 90% (non-condensing) |
| Min Operating Temperature |
| 32 °F |
| Max Operating Temperature |
| 104 °F |
| Min Storage Temperature |
| -4 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Operating |
| 10 - 90% (non-condensing) |
| Dimensions & Weight |
| Depth |
| 13.8 in |
| Width |
| 17.3 in |
| Height |
| 1.7 in |
| Weight |
| 7.91 lbs |
| Ports |
| Type |
| 10/100 (PoE) |
| Qty |
| 12 |
| Performance |
| Type |
| forwarding performance (64-byte packet size), switching capacity |
| Value |
| 6.55 Mpps, 8.8 Gbps |
| Ports (2nd) |
| Type |
| 10/100 |
| Qty |
| 12 |
| Ports (3rd) |
| Type |
| combo Gigabit SFP |
| Qty |
| 2 |
Teknik Kısa
PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
12 Port
12 Port PoE Güç Bütçesi : 0-50 Watt
