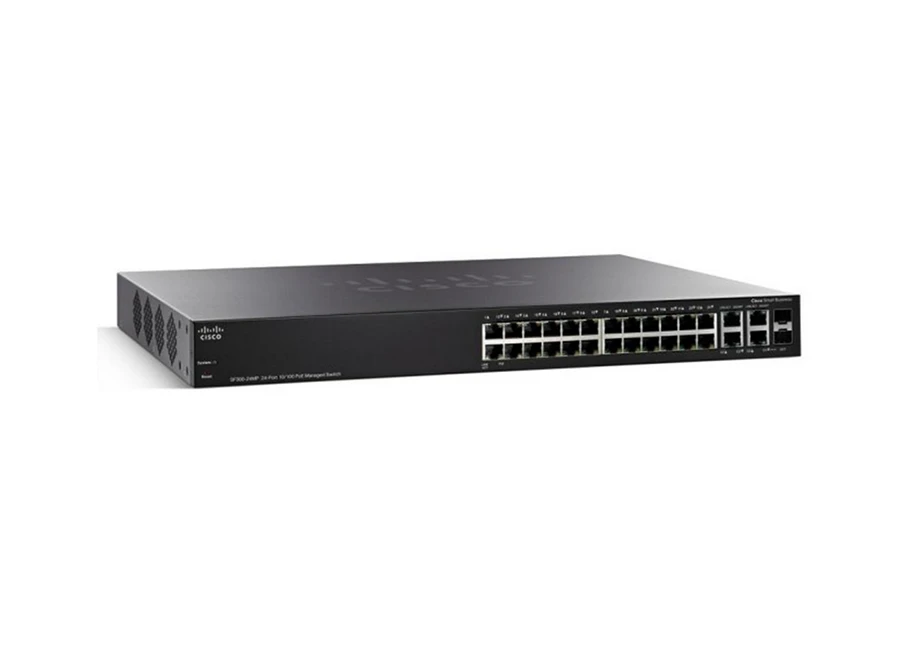

Cisco SF300 24MP PoE Switch

Teknik Özellikler

General
Device Type	Switch - 24 ports - L3 - Managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Fast Ethernet
Ports	24 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)	PoE+
PoE Budget	375 W
Performance	Switching capacity: 12.8 Gbps ¦ Forwarding performance (64-byte packet size): 9.52 Mpps
Capacity	ACL rules: up to 512
MAC Address Table Size	8K entries
Jumbo Frame Support	10KB
Routing Protocol	Static IPv4 routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 3 switching, Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM	128 MB
Flash Memory	16 MB
Status Indicators	Port transmission speed, system, link/activity
Expansion / Connectivity
Interfaces	24 x 100Base-TX RJ-45 PoE+ ¦ 1 x console DB-9 management ¦ 4 x 1000Base-T RJ-45 ¦ 2 x SFP (mini-GBIC)
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
MTBF	135,670 hours
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localisation	Chinese (simplified), English, German, French, Italian, Spanish, Japanese / North America
Dimensions & Weight
Width	44 cm
Depth	35 cm
Height	4.45 cm
Weight	5.08 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 90% (non-condensing)
