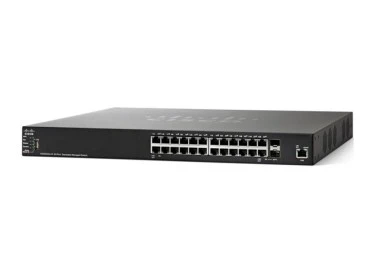

Cisco SG350X 24PD PoE Switch

Teknik Özellikler

evice Type	Switch - 24 ports - managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	20 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+ + 4 x 10/100/1000/2.5G (UPOE)
Power Over Ethernet (PoE)	PoE+
PoE Budget	375 W
Performance	Switching capacity (64-byte packet size): 104.16 Mpps
	Switching capacity: 140 Gbps
Capacity	MSTP instances: 16
	Active VLANs: 4096
	IPv4 routes (static): up to 8000
	ACL entries: up to 2000
MAC Address Table Size	64K entries
Jumbo Frame Support	9000 bytes
Max Units In A Stack	4
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol	SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Encryption Algorithm	MD5, SSL
Authentication Method	RADIUS, TACACS, TACACS+
Features	Flow control, layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 24 MB packet buffer, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 3 fans, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	System, link/speed, master, stack
Expansion / Connectivity
Interfaces	20 x 1000Base-T RJ-45 30 W
	4 x 2.5Gbit LAN RJ-45 60 W
	2 x 10Gbit LAN RJ-45/SFP+ uplink
	2 x 10GBase-X SFP+ uplink
	1 x console RJ-45
	1 x management (Gigabit LAN)
	1 x USB Type A
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (47 - 63 Hz)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
MTBF	426,741 hours
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2, USGv6
Localization	North America
Dimensions & Weight
Width	17.3 in
Depth	10.1 in
Height	1.7 in
Weight	8.8 lbs
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-4 °F
Max Storage Temperature	158 °F
Humidity Range Storage	10 - 90% (non-condensing)
