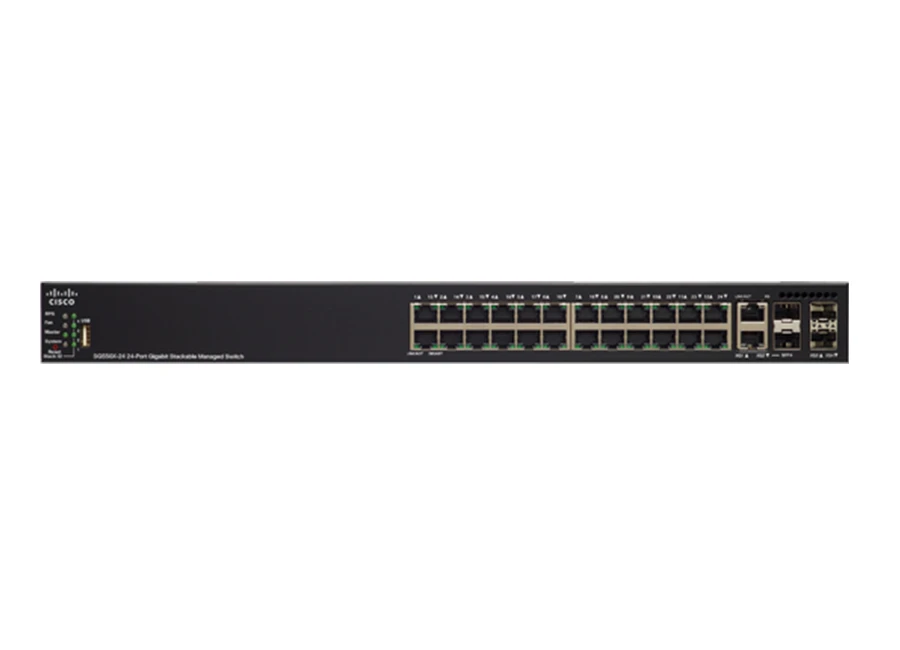

Cisco SG550X 24P PoE Switch

Teknik Özellikler

isco Small Business SG550X-24P - switch - 24 ports - Managed - rack-mountable
Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	195 W
Performance	Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps
Capacity	VLANs supported: 4094 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 7000 ¦ IPv6 routes (static): 7000 ¦ ACL rules: 3000 ¦ IP router interfaces: 256 ¦ QoS hardware queues: 8
MAC Address Table Size	16K entries
Jumbo Frame Support	9000 bytes
Routing Protocol	RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Features	Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V (50/60 Hz)
Power Redundancy	Yes
Dimensions (WxDxH)	44 cm x 35 cm x 4.4 cm
Weight	4.72 kg
Manufacturer Warranty	Limited lifetime warranty
Extended Specification
General
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity	VLANs supported: 4094 ¦ QoS hardware queues: 8 ¦ IPv4 routes (static): 7000 ¦ IPv6 routes (static): 7000 ¦ ACL rules: 3000 ¦ IP router interfaces: 256 ¦ QoS hardware queues: 8
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable
Encryption Algorithm	MD5, SSL
Features	Flow control, DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard
Flash Memory	256 MB
Jumbo Frame Support	9000 bytes
MAC Address Table Size	16K entries
Max Units In A Stack	8
Performance	Forwarding performance (64-byte packet size): 95.23 Mpps ¦ Switching capacity: 128 Gbps
PoE Budget	195 W
Ports	24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE)	PoE+
Processor	X ARM: 800 MHz
RAM	512 MB
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Routing Protocol	RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR
Status Indicators	Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Subtype	Gigabit Ethernet
Dimensions & Weight
Depth	35 cm
Height	4.4 cm
Weight	4.72 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink ¦ 2 x 10GBase-T RJ-45 uplink ¦ 1 x console RJ-45 ¦ 1 x USB Type A
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1 year ¦ Technical support - web support - 1 year
Miscellaneous
Cables Included	1 x serial cable
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2, FCC CFR47 Part 15 A, USGv6
MTBF	299,949 hours
Rack Mounting Kit	Included
Power
Power Consumption Operational	269.2 Watt
Power Device	Internal power supply
Power Redundancy	Yes
Power Redundancy Scheme	3+1
Voltage Required	AC 120/230 V (50/60 Hz)
