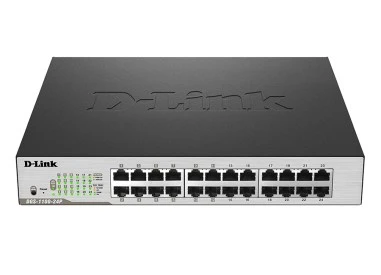

D-Link DGS 1100 24P/B PoE Switch

Switch DGS-1100 series is a cost-effective solution for a class of SOHO and small and medium-sized businesses, as well as for networking companies, such as branch offices and meeting rooms that require simple control. Each model comes in a compact desktop metal case and is equipped with 5, 8, 16 or 24 Gigabit ports.

DGS-1100 switches conform IEEE802.3az Energy Efficient Ethernet, consuming less power with a small amount of traffic.Installation of EEE provides small and medium-sized businesses saving money by reducing the costs associated with the purchase of equipment for cooling. Switches DGS-1100 series support JavaScript D-Link Green, providing automatic reduction of energy consumption. If the automatically determined by the length of cable connected less than 20 meters, the switch reduces power consumption. In addition, the switch determines the connection status of each port and provides automatically powers down ports.

EasySmart switches support management through SmartConsole utility or through a Web-based interface. SmartConsole easily allows customers to discover line switches D-Link Smart in the same network segment L2. With this utility, eliminating the need to change the IP-address of the computer and provides easy initial installation series switches Smart. Displayed on the screen switches belonging to the same network segment and connected to the user's local PC, and there is the possibility of immediate access. User available extended configuration and basic setup of discovered devices such as password changes and software updates. Web-friendly graphical interface allows network administrators to remotely manage network port level.

Switches DGS-1100 series support JavaScript Surveillance VLAN for the video. Surveillance VLAN assigns video traffic priority and a separate VLAN, providing high-quality video surveillance and data through one switch DGS-1100, thereby reducing expenses associated with the acquisition of additional equipment. In addition, the bandwidth management function allows to reserve bandwidth for various applications that require high bandwidth, or provide them with the highest priority.

Switches support the Loopback Detection and Cable Diagnostics, which allows network administrators to quickly and easily find and fix problems in the network. Loopback Detection is used to detect loops and automatically disable the port on which a loop was detected. Cable Diagnostics is designed to determine the types of copper cabling, and the type of cable error.

Switch Series DGS-1100 supports advanced security features such as Static MAC, protection from storms and IGMP Snooping.Static MAC function allows you to create "white" list of MAC-addresses, allowing access only to authorized devices. Function storm protection necessary to limit to a predetermined threshold broadcast, multicast or unknown unicast traffic. Switch blocks or drops packets that fall under this restriction, since a large number of such traffic can lead to network congestion. IGMP Snooping function reduces the number of multicast traffic and increase network performance.
