Açıklama

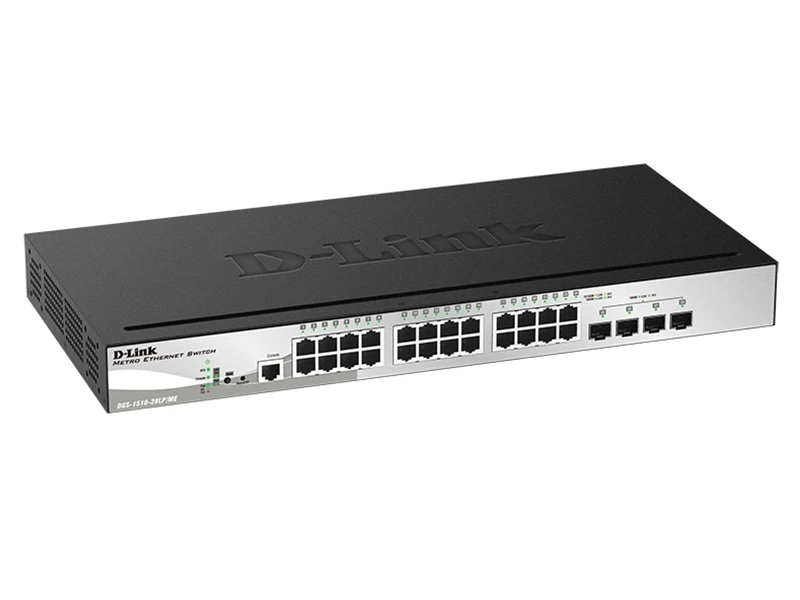

D-Link DGS 1510 28LP ME 10/100/1000 PoE Switch
Teknik Özellikler
| Hardware |
| Interfaces |
| 24 ports 10/100/1000Base-T PoE |
| 4 ports 1000Base-X SFP |
| Auto MDI/MDIX |
| Indicators |
| Power (per device) |
| Redundant Power Supply (RPS) (per device) |
| Console (per device) |
| Link/Activity/Speed (per port) |
| Conseole Port |
| RJ-45 |
| Network Cables |
| UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100-Ohm STP (100 m max.) |
| Performance |
| Switch Fabric |
| 56 Gbps |
| The maximum transmission speed of packets |
| 48,95Mpps |
| Transmission method |
| Store-and-forward |
| The MAC address table |
| 16K entries |
| Update MAC addresses |
| up To 512 static entries of MAC addresses |
| Buffer |
| 1,5 МB |
| Flash memory |
| 32 МB |
| Software |
| Standards and functions |
| IEEE802.3 |
| IEEE802.3u |
| IEEE802.3ab |
| IEEE802.3az, |
| IEEE802.3z |
| IEEE 802.3x |
| Stacking |
| Virtual stacking |
| D-Link Single IP Management |
| Up to 32 devices, United in a virtual stack |
| Layer 2 features |
| Standards and functions |
| IEEE802.3 |
| IEEE802.3u |
| IEEE802.3ab |
| IEEE802.3az |
| IEEE802.3z |
| Flow control IEEE 802.3 x |
| Stacking |
| Virtual stacking |
| D-Link Single IP Management |
| Up to 32 devices, United in a virtual stack |
| Layer 2 features |
| table MAC-addresses: 16K |
| Flow control |
| Flow control 802.3 x |
| HOL blocking prevention |
| Back pressure |
| Jumbo-size frames up to 9K |
| Spanning Tree Protocols |
| 802.1 D STP |
| 802.1 w RSTP |
| 802.1 s MSTP |
| BPDU filtering |
| Root Restriction |
| Detection loops Loopback detection |
| Link aggregation |
| Compatible with 802.1 AX and 802.3 ad |
| Port mirroring |
| Support group 1 mirroring |
| Modes: One-to-One, Many-to-One, Flow-based (ACL) |
| Ethernet Ring Protection Switching (ERPS) |
| L2 Protocol Tunneling (L2PT) |
| Multicast layer 2 |
| IGMP Snooping |
| IGMP v1/v2 Snooping, v3 awareness |
| Support for 1024 groups |
| IGMP Snooping Fast Leave port-based/host |
| Report Suppression |
| Authentication IGMP |
| Filtering IGMP |
| MLD Snooping |
| MLD v1, MLD v2 awareness |
| Support for 1024 groups |
| MLD snooping Fast Leave port-based/host |
| VLAN |
| Group VLAN |
| Max. 4094 VLAN |
| VLAN port-based |
| VLAN based on MAC addresses |
| 802.1 Q Tagged VLAN |
| GVRP |
| Max. 255 dynamic VLAN |
| 802.1 v Protocol VLAN |
| 802.1 Q Tagged VLAN |
| Double VLAN (Q-in-Q) |
| Q-in-Q port-based |
| ISM VLAN |
| VLAN Translation |
| VLAN Trunking |
| Functions of level 3 |
| Max. 1024 ARP entries |
| Supports 255 static ARP entries |
| Supports Gratuitous ARP |
| IPv6 Neighbor Discovery (ND) |
| 16 IP interfaces |
| A default route |
| Static маршрут1 |
| Support 64 static routes IPv4 |
| Support for 32 static routes IPv6 |
| Quality of service (QoS) |
| CoS based on: |
| Switch port |
| Priority queue for 802.1 p |
| VLAN ID |
| MAC addresses |
| Ether Type |
| IPv4/IPv6 addresses |
| DSCP |
| ToS |
| Protocol type |
| TCP/UDP port |
| Class of IPv6 traffic |
| IPv6 flow label |
| Content package, user-defined |
| Bandwidth management |
| Port-based (incoming, in increments up to 64 Kbit/s) |
| Based on the flow (incoming, in increments up to 64 Kbit/s) |
| For output queue (in increments up to 64 Kbit/s) |
| Processing queues |
| Strict Priority Queue (SPQ) |
| Weighted Round Robin (WRR) |
| QoS on a schedule |
| Three color marker |
| CIR/PIR min. step up to 8 Kbit/s |
| Two Rate Three Color Marker (trTCM), CBS/PBS |
| Single Rate Three Color Marker (srTCM), CBS/EBS |
| 8 output queues |
| The access control lists (ACL) |
| ACL on the basis of |
| Switch port |
| The 802.1 p priority |
| VLAN ID |
| MAC addresses |
| Ether type |
| IPv4/v6-address |
| Class of IPv6 traffic |
| IPv6 flow label |
| DSCP |
| ToS |
| Protocol type |
| Port number TCP/UDP |
| Content package, user-defined |
| Up to 1024 access rules for inbound traffic |
| ACL schedule |
| Statistics ACL |
| Filtering CPU interface |
| AAA |
| 802.1 X |
| Access control port-based |
| Access control host-based |
| Dynamic VLAN assignment |
| Access control based on MAC addresses |
| Access control host-based |
| Access control port-based |
| Dynamic VLAN assignment |
| Microsoft® NAP (IPv4) |
| Guest VLAN |
| RADIUS (IPv4) |
| TACACS (IPv4) |
| TACACS+ (for IPv4) |
| XTACACS+ (IPv4) |
| Trusted Host |
| Accounting RADIUS |
| 4 level user account |
| Security |
| SSH v1/v2 |
| SSL v1/v2/v3 |
| Port Security |
| Up to 64 MAC-addresses per port |
| Protection from a broadcast/multicast/unicast storm |
| IP-MAC-Port Binding (IMPB) |
| Checking the ARP-packets |
| Checking the IP-packets |
| DHCP Snooping |
| DHCPv6 Snooping1 |
| DHCPv6 Guard1 |
| IPv6 Yol Tarifi Göster Advertisement (RA) Guard1 |
| IPv6 ND Snooping1 |
| IPv6 ND Inspection1 |
| Segmentation of traffic |
| D-Link Safeguard Engine |
| L3 Control Packet Filtering |
| Filtering NetBIOS/NetBEUI |
| DHCP Server Screening |
| Filtering DHCP clients |
| The prevention of ARP Spoofing |
| Protection against attacks BPDU |
| Prevention of DoS attacks |
| OAM |
| Cable Diagnostics |
| 802.3 ah Ethernet Link OAM |
| Dying Gasp |
| 802.1 ag Connectivity Fault Management (CFM) |
| Management |
| Web GUI (supports IPv4/IPv6) |
| Command line interface (CLI) |
| Telnet server/client (supports IPv4) |
| TFTP/FTP-client (support IPv4) |
| ZModem |
| Logging of input commands |
| IPv6 Neighbor Discovery |
| SNMP v1/v2c/v3 (supports IPv4) |
| SNMP Traps |
| System log |
| Max. number of entries in the log: 10 000 |
| SMTP (IPv4) |
| RMON v1: |
| Support for groups 1, 2, 3, 9 |
| RMON v2: |
| Support Probe Config group |
| 802.1 AB LLDP |
| LLDP-MED |
| BootP/DHCP-client (support IPv4) |
| Automatically configure DHCP1 |
| DHCP Relay (support IPv4) |
| DHCP Relay Option 60, 61 and 82 |
| DHCP Client Option 12 |
| Adding a tag PPPoE Circuit-ID1 |
| Supports multiple copies of SOFTWARE (Multiple Images) |
| Supports multiple copies of configuration (Multiple Configurations) |
| Flash file system |
| Monitoring CPU |
| Monitor memory |
| SNTP (IPv4) |
| Debugging commands |
| Password recovery |
| Password encryption |
| Ping |
| Traceroute |
| Microsoft® NLB (network load Balancing) (support IPv4) |
| Zero Touch Provisioning (ZTP)1 |
| sFlow1 |
| D-Link Network Assistant1 |
| Supports Real Time Clock (RTC) |
| Standarts MIB |
| RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 |
| RFC1212 |
| RFC1213 |
| RFC1215 |
| RFC1493, RFC4188 |
| RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 |
| RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 |
| RFC271, RFC1757, RFC2819 |
| RFC2021 |
| RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 |
| RFC2668 |
| RFC2674, RFC4363 |
| RFC2618 |
| RFC4022 |
| RFC4113 |
| RFC3298 |
| RFC2620 |
| RFC2925 |
| RFC2465 |
| RFC2466 |
| RFC4293 |
| RFC3289 |
D-Link DGS 1510 28LP ME 10/100/1000 PoE Switch Pdf Dosyası1.51 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Rack Mount
