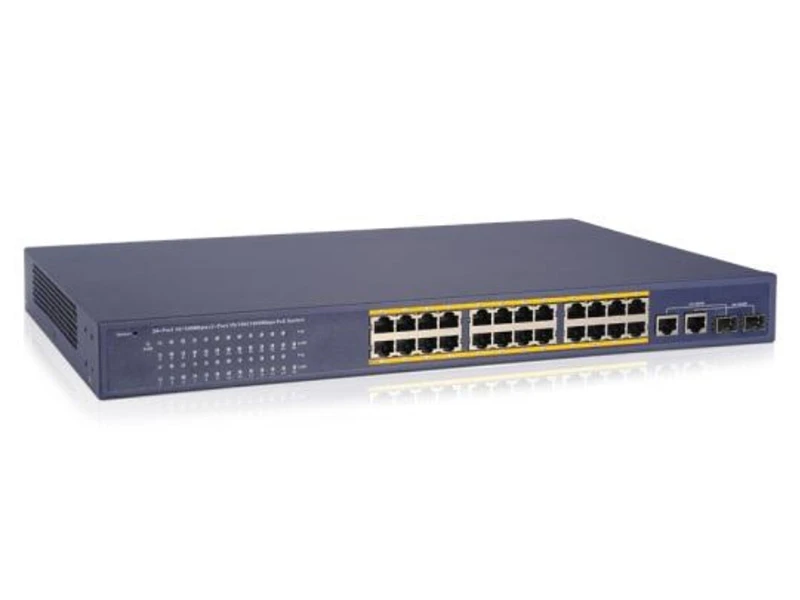

Dynacom DS5126P PoE Switch
Özellikler
Teknik Özellikler
| Technology |
| Network Standards |
| IEEE802.3i l0BASE-T |
| IEEE802.3u l0BASE-TX |
| IEEE802.3x Flow Control |
| IEEE802.3af Power Over Ethernet |
| PoE power |
| 15.4W per port(IEEE802.3at) |
| Wiring: Data provided over pairs over l/2 and 3/6 |
| Cable: Unshielded UPT cat.5 or higher |
| Processing types |
| Store-and-forward |
| Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size |
| 8000MAC address |
| Buffer memory |
| 3MB embedded memory per unit |
| Network latency |
| Less than 20us for 64-byte frames in Store-and- forward mode for 100Mbps to 100Mbps transmission |
| Administrative Switch Management |
| IEEE802.1 Q static VLAN (128 groups.static) |
| IEEE802.1p Class of service (CoS) |
| Port based QoS |
| DSCP-based QoS |
| IEEE802.3 and link aggregation (Manual or LACP) |
| IEEE802.1 D Spanning Tree Protocol |
| SNMP v1,V2c,v3 |
| RFC 1213 MIB II |
| RFC 1643 Ethernet interface MIB |
| RFC 1493 bridge MIB |
| RMON Group 1,2,3,9 |
| RFC 2131 DHCP client |
| IEE802.1x |
| Port-based security by locked MAC addresses |
| MACACL |
| Storm control for broadcast multicast and unicast packets |
| Network ports |
| 24 10/100 Mbps auto sensing Fast ethernet ports |
| 4 10/100/1000 Mbps auto-sensing Gigabit |
| Ethernet switching ports (RJ-45) |
| 2 Dual Personality SFP ports |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
Yönetilebilirlik : Yönetilemez
