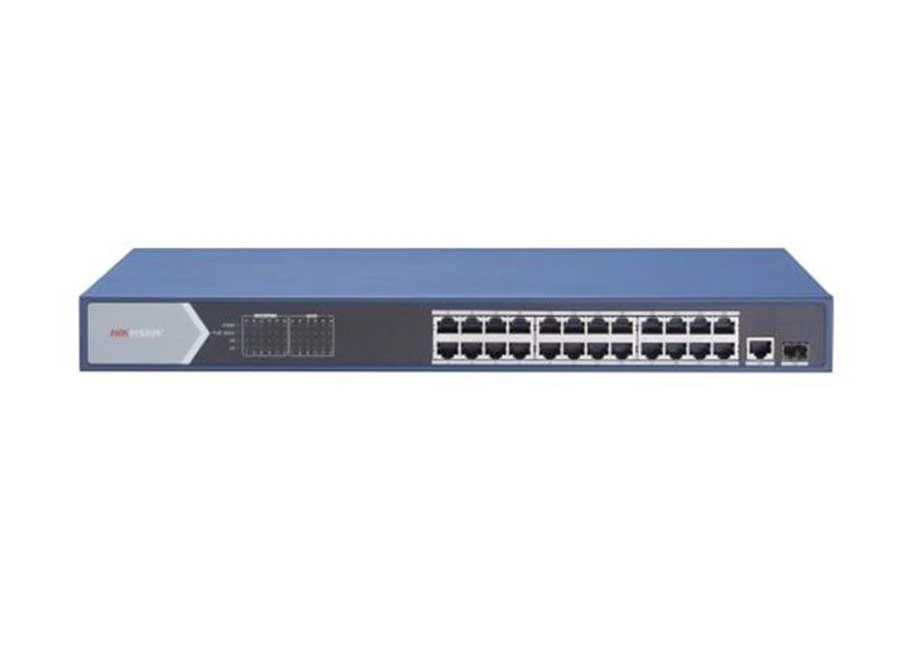

Hikvision DS 3E0526P E PoE Switch
Özellikler
- 24 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- PoE port with 6 KV surge protection.
- PoE output power management.
- Gigabit network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
Teknik Özellikler
Item | |
Item | DS-3E0526P-E |
Backplane | |
Backplane | 52 Gbps |
Forwarding rate | |
Forwarding rate | 38.688 Mpps |
MAC | |
MAC | 8 K |
Ports | |
Ports | 24 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port |
Dimensions(W×D×H)(mm) | |
Dimensions(W×D×H)(mm) | 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”) |
POE/POE+ | |
POE/POE+ | IEEE 802.3af, IEEE 802.3at |
POE power consumption | |
POE power consumption | 400 W |
Power supply | |
Power supply | 100 to 240 VAC, 50/60 Hz, Max. 6.5 A |
Environment | |
Environment | Operating temperature 0˚C to 40˚C (32˚F to 104˚F) |
Storage temperature –40˚C to 85˚C (–40˚F to 185˚F) | |
Operating humidity 5% to 95% (no condensation) | |
Storage humidity 5% to 95% (no condensation) |
Teknik Kısa
PoE : PoE
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
Aktarım Port Sayısı : 2
