Açıklama

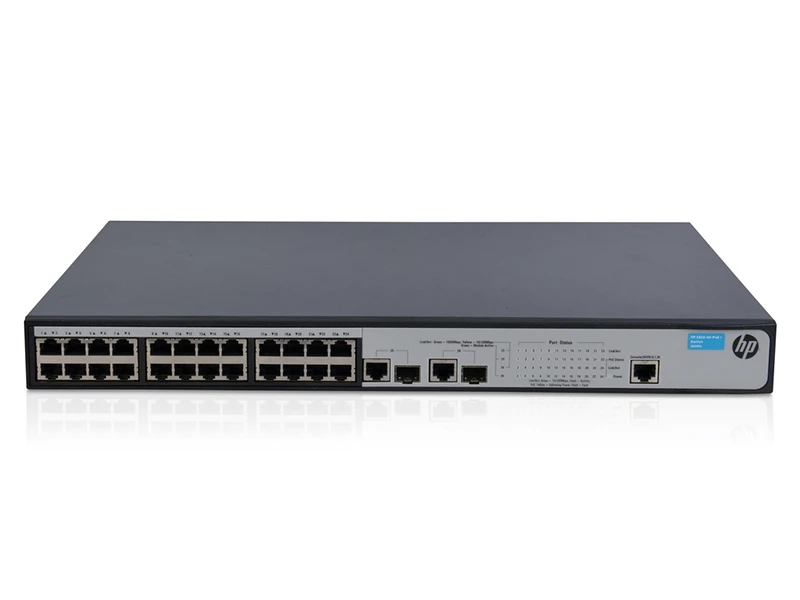

HP 1910 24 PoE Plus JG539A PoE Switch
Teknik Özellikler
| Capacity |
| Type: MAC addresses |
| Value: 16000 |
| Dimensions & Weight |
| Depth: 13 in |
| Height: 1.8 in |
| Weight: 8.71 lbs |
| Width: 17.4 in |
| Environmental Parameters |
| Humidity Range Operating: 15 - 95% (non-condensing) |
| Humidity Range Storage: 15 - 90% (non-condensing) |
| Max Operating Temperature: 113 °F |
| Max Storage Temperature: 158 °F |
| Min Operating Temperature: 32 °F |
| Min Storage Temperature: -40 °F |
| Flash Memory |
| Installed Size: 128 MB |
| Header |
| Brand: HPE |
| Compatibility: PC |
| Country Kits: United States |
| Localization: English |
| Manufacturer: ProCurve Networking |

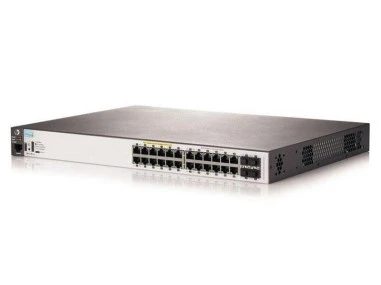

| Model: 2530-24G-PoE+ Switch |
| Packaged Quantity: 1 |
| Product Line: HPE |
| Interface Provided |
| Comments: PoE+ |
| Connector Type: RJ-45 |
| Connector Type: RJ-45 |
| Interface: Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty: 24 |
| Type: 1000Base-T |
| Connector Type: SFP |
| Connector Type: FP+ |
| Qty: 4 |
| Type: Gigabit LAN |
| Comments: Management |
| Qty: 1 |
| Type: Console |
| Connector Type: Type B |
| Type: USB |
| Miscellaneous |
| Authentication Method: RADIUS , Secure Shell v.2 (SSH2) , TACACS+ |
| Compliant Standards: CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 , EN 60825 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Class A certified , IEC 60950-1 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950-1 , VCCI Class A ITE |
| Encryption Algorithm: SSL |
| Height (Rack Units): 1 |
| Networking |
| Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x |
| Features: Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Class of Service (CoS) , DHCP support , Flow control , Full duplex mode , Generic Attribute Registration Protocol (GARP) , Half duplex mode , IPv6 support , LLDP support , Multiple Spanning Tree Protocol (MSTP) support , Port mirroring , Quality of Service (QoS) , sFlow , SNTP support , STP Root Guard , Trunking , VLAN support |
| Form Factor: Desktop , Rack-mountable , Wall-mountable |
| Jumbo Frame Support: 9220 bytes |
| MAC Address Table Size: 16000 entries |
| Manageable: Yes |
| PoE Budget: 195 W |
| Ports Qty: 24 |
| Power Over Ethernet (PoE): PoE+ |
| Remote Management Protocol: CLI , HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , SSH-2 , Telnet , TFTP |
| Subcategory: Network hubs and switches |
| Subtype: Gigabit Ethernet |
| Type: Switch |
| Performance |
| Type: Throughput |
| Value: 41.6 Mpps |
| Type: Switching capacity |
| Value: 56 Gbps |
| Ports |
| Qty: 24 |
| Type: 10/100/1000 (PoE+) |
| Ports (2nd) |
| Qty: 4 |
| Type: Gigabit SFP |
| Power Device |
| Frequency Required: 50/60 Hz |
| Nominal Voltage: AC 120/230 V |
| Power Consumption Operational: 247 Watt |
| Type: Internal power supply |
| Processor |
| Clock Speed: 800 MHz |
| Installed Qty: 1 |
| Manufacturer: ARM |
| RAM |
| Installed Size: 256 MB |
| Technology: DDR3 SDRAM |
| Service |
| Support Details Full Contract Period: Lifetime |
| Support Details Service Included: Advance parts replacement |
| Support Details Type: imited warranty |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 130-200 Watt
