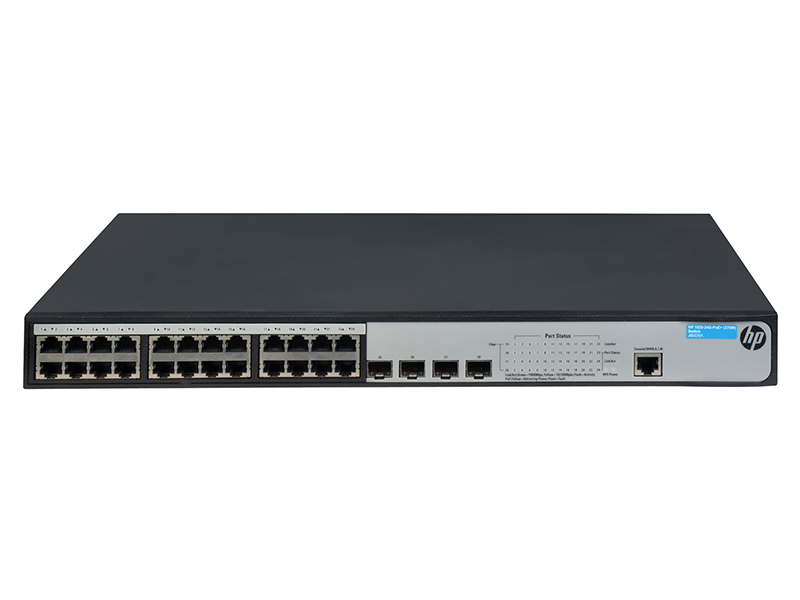

HP 1920 24G PoE Plus JG926A 10/100/1000 PoE Switch
Teknik Özellikler
General | |
Device Type | Switch - 24 ports - L3 - managed |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 |
Capacity | IPv4 routing table entries : 32 |
IPv6 routing table entries : 32 | |
Jumbo Frame Support | 10KB |
Authentication Method | RADIUS, Secure Shell (SSH) |
MAC Address Table Size | 8192 entries |
Authentication Method | Secure Shell (SSH), RADIUS |
Power Over Ethernet (PoE) | PoE+ |
Encryption Algorithm | SSL |
Routing Protocol | Static IPv4 routing, static IPv6 routing |
Jumbo Frame Support | 10KB |
PoE Budget | 370 W |
Manufacturer | HP |
Camera | |
Installed Size | 32 MB |
Networking | |
MAC Address Table Size | 8192 entries |
Subcategory | network hubs and switches |
Subtype | Gigabit Ethernet |
Form Factor | desktop, rack-mountable |
Type | Switch |
Advanced Switching | Layer 3 |
Features | ARP support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, STP Root Guard, Single IP Management (SIM), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Access Control List (ACL) support, VLAN support, Weighted Round Robin (WRR) queuing, auto-negotiation, auto-uplink (auto MDI/MDI-X), dual firmware images, flow control, layer 2 switching, port isolation, port mirroring, static routing, Cable Diagnostics Function, Class of Service (CoS), DHCP client, DHCP relay, IGMP snooping, IPv6 support, Jumbo Frames support |
Compliant Standards | IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab |
Jumbo Frame Support | 10KB |
Ports Qty | 24 |
Manageable | Yes |
Routing Protocol | static IPv4 routing, static IPv6 routing |
PoE Budget | 370 |
Remote Management Protocol | CLI, TFTP, Telnet, HTTP, HTTPS, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 |
Power Over Ethernet (PoE) | PoE+ |
Power Device | |
Nominal Voltage | AC 120/230 V |
Frequency Required | 50/60 Hz |
Power Consumption Operational | 474 Watt |
Type | internal power supply |
Miscellaneous | |
Rack Mounting Kit | included |
Encryption Algorithm | SSL |
MTBF | 65.78 sec |
Height (Rack Units) | 1 m |
Color Category | gray |
MTBF | 65.78 years |
Interface Provided | |
Qty | 1, 24, 4 |
Comments | PoE+, management |
Processor | |
Installed Qty | 1 |
Manufacturer | MIPS |
Clock Speed | 500 MHz |
RAM | |
Technology | SDRAM |
Environmental Parameters | |
Humidity Range Storage | 10 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Header | |
Brand | HP |
Product Line | HP |
Model | 1920-24G-PoE+ |
Localization | English |
Country Kits | United States |
Packaged Quantity | 1 |
Compatibility | PC |
Cable Details | |
Type | console cable |
Included Qty | 1 |
Dimensions & Weight | |
Width | 17.3 in |
Depth | 10.2 in |
Height | 1.7 in |
Weight | 7.5 lbs |
Ports | |
Type | 10/100/1000 (PoE+) |
Qty | 24 |
Performance | |
Type | routing/switching capacity, throughput |
Value | 56 Gbps, up to 41.7 Mpps |
Ports (2nd) | |
Type | Gigabit SFP |
Qty | 4 |
Capacity | |
Type | IPv4 routing table entries, IPv6 routing table entries |
Value | 32 |
Service & Support | |
Type | limited lifetime warranty |
Service & Support Details | |
Type | limited warranty, product info support |
Service Included | advance parts replacement, phone consulting |
Full Contract Period | 3 years, lifetime |
Response Time | next business day |
General | |
Manufacturer | HP |
HP 1920 24G PoE Plus JG926A 10/100/1000 PoE Switch Pdf Dosyası404.28 KB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Montaj Tipi : Rack Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Desk Mount
