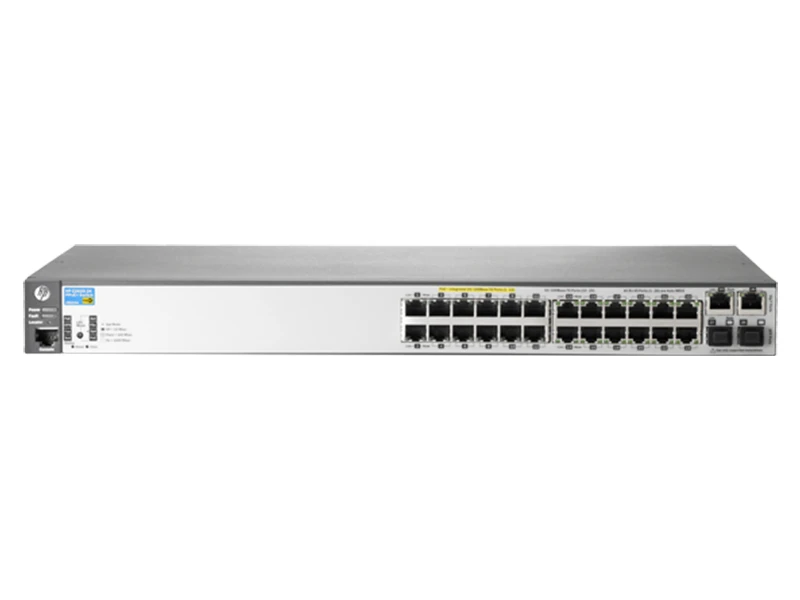

HP 2620 24 PPoE Plus J9624A 10/100 PoE Switch
Teknik Özellikler
| Networking |
| Compliant Standards: |
| IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3at , IEEE 802.3u , IEEE 802.3x |
| Features: |
| Access Control List (ACL) support , ARP support , Auto-sensing per device , Auto-uplink (auto MDI/MDI-X) , DHCP protection , DHCP support , Dynamic ARP protection , Flow control , Full duplex mode , Half duplex mode , IGMP snooping , IPv6 support , Jumbo Frames support , LLDP support , MAC address lockout , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Per-port broadcast throttling , PoE+ , Port mirroring , Quality of Service (QoS) , sFlow , STP Root Guard , VLAN support |
| Form Factor: |
| Rack-mountable |
| Jumbo Frame Support: |
| 9220 bytes |
| MAC Address Table Size: |
| 16000 entries |
| Manageable: |
| Yes |
| Ports Qty: |
| 24 |
| Power Over Ethernet (PoE): |
| PoE+ |
| Remote Management Protocol: |
| CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet |
| Routing Protocol: |
| IGMPv3 , MLD , MLDv2 , RIP-1 , RIP-2 |
| Subcategory: |
| Network hubs and switches |
| Subtype: |
| Fast Ethernet |
| Type: |
| Switch |
| Dimensions & Weight |
| Depth: |
| 10 in |
| Height: |
| 1.7 in |
| Weight: |
| 7.03 lbs |
| Width: |
| 17.4 in |
| Environmental Parameters |
| Humidity Range Operating: |
| 15 - 95% (non-condensing) |
| Humidity Range Storage: |
| 15 - 90% (non-condensing) |
| Max Operating Temperature: |
| 131 °F |
| Max Storage Temperature: |
| 158 °F |
| Min Operating Temperature: |
| 32 °F |
| Min Storage Temperature: |
| -40 °F |
| Flash Memory |
| Installed Size: |
| 4 MB |
| Header |
| Brand: |
| HPE |
| Compatibility: |
| PC |
| Country Kits: |
| United States |
| Localization: |
| English |
| Manufacturer: |
| ProCurve Networking |
| Model: |
| 2620-24-PPoE+ Switch |
| Packaged Quantity: |
| 1 |
| Product Line: |
| HPE |
| Interface Provided |
| Connector Type: |
| RJ-45 |
| Interface: |
| Ethernet 10Base-T/100Base-TX |
| Qty: |
| 12 |
| Interface: |
| Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty: |
| 2 |
| Connector Type: |
| SFP (mini-GBIC) |
| Comments: |
| PoE+ |
| Comments: |
| Management |
| Qty: |
| 1 |
| Type: |
| Console |
| Miscellaneous |
| Authentication Method: |
| RADIUS , Secure Shell v.2 (SSH2) , TACACS+ |
| Compliant Standards: |
| CISPR 22 Class A , CISPR 24 , CSA 22.2 No. 60950 , EN 60825 , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN55022 , EN55024 , FCC Class A certified , IEC 60950 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950 , VCCI Class A ITE |
| Encryption Algorithm: |
| SSL |
| Height (Rack Units): |
| 1 |
| Rack Mounting Kit: |
| Included |
| Performance |
| Type: |
| Routing/switching capacity |
| Value: |
| 12.8 Gbps |
| Type: |
| Throughput |
| Value: |
| Up to 9.5 Mpps |
| Ports |
| Qty: |
| 12 |
| Type: |
| 10/100 |
| Ports (2nd) |
| Qty: |
| 12 |
| Type: |
| 10/100 Poe + |
| Ports (3rd) |
| Qty: |
| 2 |
| Type: |
| 10/100/1000 |
| Ports (4rd) |
| Qty: |
| 2 |
| Type: |
| SFP (mini-GBIC) |
| Power Device |
| Frequency Required: |
| 50/60 Hz |
| Nominal Voltage: |
| AC 120/230 V |
| Type: |
| Internal power supply |
| Processor |
| Clock Speed: |
| 400 MHz |
| Installed Qty: |
| 1 |
| Manufacturer: |
| Freescale |
| Type: |
| MPC8313 |
| RAM |
| Installed Size: |
| 512 MB |
| Technology: |
| SDRAM |
| Service |
| Support Details Full Contract Period: |
| Lifetime |
| Support Details Service Included: |
| Advance parts replacement |
| Support Details Type: |
| Limited warranty |
| Service & Support |
| Type: |
| Limited lifetime warranty |
| Service & Support Details |
| Response Time: |
| Next business day |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
12 Port
12 Port PoE Güç Bütçesi : 50-130 Watt
PoE : Hibrid
