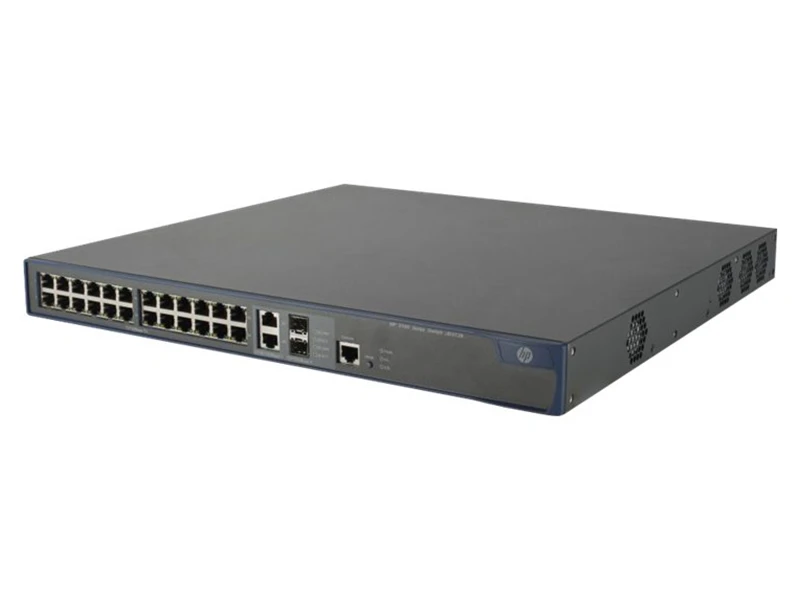

HP 3100 24 PoE v2 EI JD313B 10/100 PoE Switch
Teknik Özellikler
| General |
| Device Type |
| Switch 24 ports - Managed - stackable |
| Enclosure Type |
| Rack-mountable 1U |
| Subtype |
| Fast Ethernet |
| Ports |
| 24 x 10/100 (PoE) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) |
| PoE |
| Performance |
| Throughput up to 6.5 Mpps ¦ Routing/switching capacity: 8.8 Gbps |
| Max Units In A Stack |
| 16 |
| Remote Management Protocol |
| SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, CLI |
| Encryption Algorithm |
| SSL |
| Authentication Method |
| RADIUS, Secure Shell v.2 (SSH2) |
| Features |
| Flow control, DHCP support, power over Ethernet (PoE), ARP support, VLAN support, IGMP snooping, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD,snooping, Device Link Detection Protocol (DLDP) support, STP Root Guard, LLDP support, Port Security, IP-MAC binding, dynamic ARP protection, DHCP protection, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), port isolation |
| Compliant Standards |
| IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP) |
| RAM |
| 128 MB - SDRAM |
| Flash Memory |
| 16 MB |
| Expansion / Connectivity |
| Interfaces |
| 24 x 100Base-TX - RJ-45 - PoE ¦ 1 x console - RJ-45 - management ¦ 2 x 1000Base-TX - RJ-45 ¦ 2 x SFP (mini-GBIC) |
| Power |
| Power Device |
| Internal power supply |
| Voltage Required |
| AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous |
| Rack Mounting Kit |
| Included |
| Compliant Standards |
| CISPR 22 Class A, GOST, EN 61000-3-2, NOM, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC |
| 60950-1, EN 60950-1, EN 60825-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1, ANSI C63.4, EN 60825-2 |
| Dimensions & Weight |
| Width |
| 44 cm |
| Depth |
| 42 cm |
| Height |
| 4.36 cm |
| Weight |
| 6.5 kg |
| Manufacturer Warranty |
| Service & Support |
| Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
| 0 °C |
| Max Operating Temperature |
| 45 °C |
| Humidity Range Operating |
| 10 - 90% (non-condensing) |
| Min Storage Temperature |
| -40 °C |
| Max Storage Temperature |
| 70 °C |
| Humidity Range Storage |
| 5 - 95% (non-condensing) |
HP 3100 24 PoE v2 EI JD313B 10/100 PoE Switch Pdf Dosyası388.83 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port Aktarım Türü : Combo
