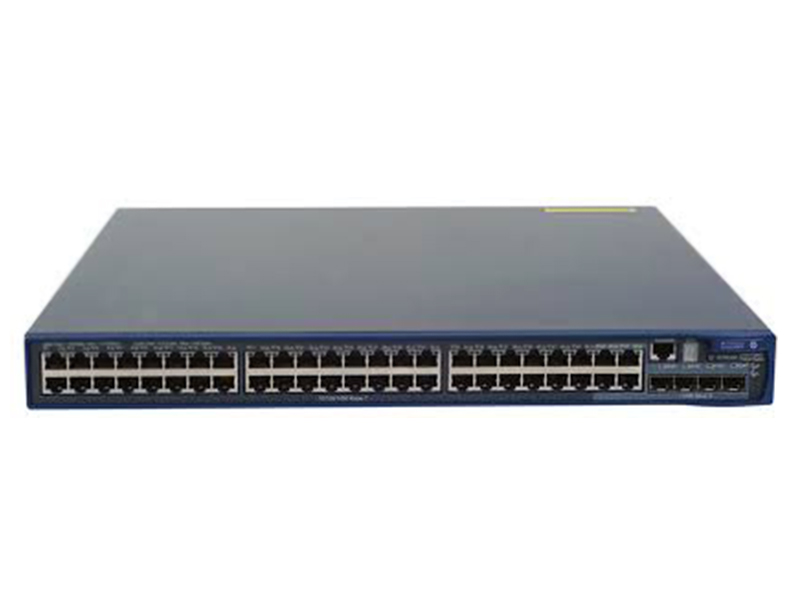

HP 5120 24G PoE Plus EI JG236A 10/100/1000 PoE Switch
Teknik Özellikler
| Model |
| Brand |
| HP |
| Series |
| 5120 EI |
| Model |
| JG236A#ABA |
| Format & Standards |
| Format |
| Rackmount |
| Standards |
| IEEE 802.1ad Q-in-Q |
| IEEE 802.1D MAC Bridges |
| IEEE 802.1p Priority |
| IEEE 802.1Q VLANs |
| IEEE 802.1s Multiple Spanning Trees |
| IEEE 802.1w Rapid Reconfiguration of Spanning Tree |
| IEEE 802.1X PAE |
| IEEE 802.3 Type 10BASE-T |
| IEEE 802.3ab 1000BASE-T |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
| IEEE 802.3ae 10-Gigabit Ethernet |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3i 10BASE-T |
| IEEE 802.3u 100BASE-X |
| IEEE 802.3x Flow Control |
| IEEE 802.3z 1000BASE-X |
| Network Management Type |
| Managed |
| Ports & Interface |
| Uplink Interface |
| SFP |
| Primary Ports |
| 24 x RJ45 + 4 x SFP |
| Primary Port Speed |
| 10/100/1000Mbps |
| Data Transmission |
| MAC Address Table |
| 16K |
| VLAN Support |
| Yes |
| Jumbo Frames |
| Yes |
| Uplink Speed |
| SFP |
| Details |
| Buffer Memory |
| 2MB |
| PoE |
| Yes |
| SNMP |
| Yes |
| QoS |
| Yes |
| LACP |
| Yes |
| Layer |
| 2.3 |
| Module Support |
| Yes |
| Power |
| 100~240VAC, 50/60Hz |
| Features |
| Features |
| Ports: |
| 24 RJ-45 autosensing 10/100/1000 PoE+ ports |
| 4 dual-personality ports; PoE autosensing 10/100/1000BASE-T or SPF |
| 2 port expansion module slots |
| 1 RJ-45 serial console port |
| PoE power: 370 W |
| Memory and processor: 128 MB SDRAM, 16 MB flash |
| Mounting: Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) |
| Throughput: 107.2 million pps |
| Routing/Switching capacity: 144 Gbps |
| Routing table size: 32 entries |
| High scalability for investment protection |
| Support for multiple services |
| Comprehensive security control policies |
| Diversified Quality of Service (QoS) policies |
| Excellent manageability. |
| Dimensions & Weight |
| Dimensions |
| 17.3" x 16.5" x 1.7" |
| Weight |
| 15.4 lbs. |
| Environmental |
| Temperature |
| ºC to 45ºC (32ºF to 113ºF) |
| Humidity |
| 10% - 90%, Non-condensing |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
