Açıklama

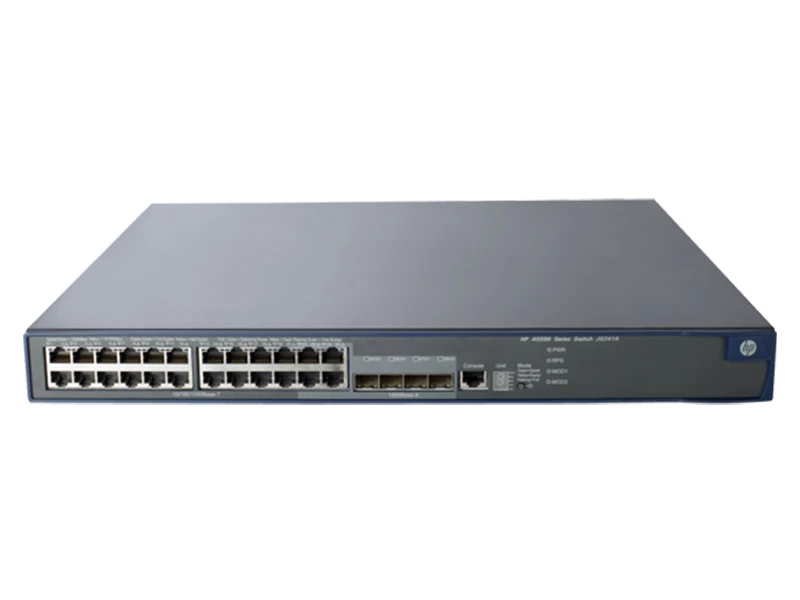

HP 5500 24G PoE Plus EI JG241A 10/100/1000 PoE Switch
Teknik Özellikler
| Chassis |
| Installed Devices Modules Qty: |
| Supported Devices Modules Qty: 2 |
| Dimensions & Weight |
| Depth: 16.5 in |
| Height: 1.7 in |
| Weight: 13.23 lbs |
| Width: 17.3 in |
| Environmental Parameters |
| Humidity Range Operating: 10 - 90% (non-condensing) |
| Humidity Range Storage: 5 - 95% (non-condensing) |
| Max Operating Temperature: 113 °F |
| Max Storage Temperature: 158 °F |
| Min Operating Temperature: 32 °F |
| Min Storage Temperature: -40 °F |
| Flash Memory |
| Installed Size: 32 MB |
| Header |
| Brand: HPE |
| Compatibility: PC |
| Country Kits: United States |
| Localization: English |
| Manufacturer: ProCurve Networking |
| Model: 5500-24G-PoE+ EI Switch with 2 Interface Slots |
| Packaged Quantity: 1 |
| Product Line: HPE |
| Interface Provided |
| Comments: PoE |
| Connector Type: RJ-45 |
| Qty: 24 |
| Type: 1000Base-T |
| Comments: Management |
| Qty: 1 |
| Type: Console |
| Connector Type: SFP (mini-GBIC) |
| Qty: 4 |
| Miscellaneous |
| Authentication Method: RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+ |
| Compliant Standards: CISPR 22 Class A , CSA C22.2 No. 60950-1 , EN 60825-1 , FCC Part 15 A , ICES-003 Class A , RoHS , WEEE |
| Encryption Algorithm: SSL |
| Height (Rack Units): 1 |
| Rack Mounting Kit: Included |
| Networking |
| Advanced Switching: Layer 4 |
| Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3i , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z |
| Features: Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Committed Access Rate (CAR) , Device Link Detection Protocol (DLDP) support , DHCP support , DiffServ support , Endpoint Admission Defense (EAD) , Flow control , IGMP snooping , IPv6 support , Jumbo Frames support , Layer 2 switching , Layer 3 switching , MLD snooping , Multiple Spanning Tree Protocol (MSTP) support , Power over Ethernet (PoE) , Quality of Service (QoS) , Rapid Spanning Tree Protocol (RSTP) support , Routing , sFlow , Spanning Tree Protocol (STP) support , STP Root Guard , Unicast Reverse Path Forwarding (URPF) , VLAN support |
| Form Factor: Rack-mountable |
| Jumbo Frame Support: Yes |
| MAC Address Table Size: 32K entries |
| Manageable: Yes |
| Ports Qty: 24 |
| Power Over Ethernet (PoE): PoE |
| Remote Management Protocol: CLI , HTTP , HTTPS , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , Telnet |
| Routing Protocol: BGP-4 , ECMP , IGMP , IGMPv2 , IGMPv3 , IS-IS , MLD , MLDv2 , MSDP , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , PIM-SSM , RIP-1 , RIP-2 , RIPng , Static IPv4 routing , Static IPv6 routing , VRRP |
| Stackable: Stackable |
| Subcategory: Network hubs and switches |
| Subtype: Gigabit Ethernet |
| Type: Switch |
| Performance |
| Type: Routing/switching capacity |
| Value: 144 Gbps |
| Type: Throughput |
| Value: 107.2 Mpps |
| Ports |
| Qty: 24 |
| Type: 10/100/1000 (PoE) |
| Ports (2nd) |
| Qty: 4 |
| Type: Shared SFP |
| Power Device |
| Frequency Required: 50/60 Hz |
| Nominal Voltage: AC 120/230 V |
| Type: Internal power supply |
| RAM |
| Installed Size: 256 MB |
| Technology: SDRAM |
| Service |
| Support Details Full Contract Period: Lifetime |
| Support Details Service Included: Advance parts replacement |
| Support Details Type: Limited warranty |
| Service & Support |
| Type: Limited lifetime warranty |
| Slot Provided |
| Free Qty: 2 |
| Total Qty: 2 |
| Type: Expansion slot |
HP 5500 EI JG241A 10/100/1000 PoE Switch Pdf Dosyası222.4 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 4
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port
