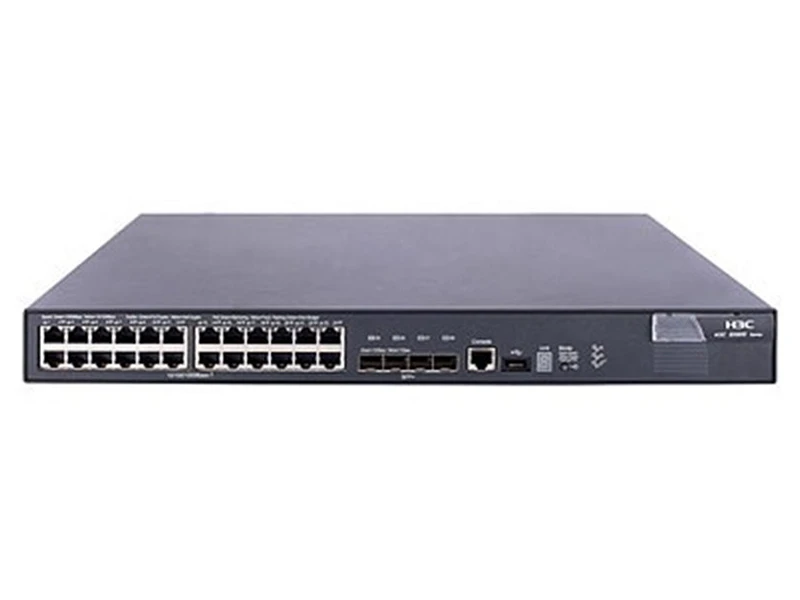

HP 5800 24G PoE JC099A 10/100/1000 PoE Switch
Teknik Özellikler
| General |
| Subtype |
| Gigabit Ethernet |
| MAC Address Table Size |
| 32K entries |
| Flash Memory |
| 512 MB flash |
| Authentication Method |
| RADIUS, Secure Shell v.2 (SSH2) |
| Remote Management Protocol |
| RMON, Telnet, SNMP 3, HTTPS, SSH |
| RAM |
| 512 MB - SDRAM |
| Compliant Standards |
| IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x, IEEE 801.1p, IEEE 802.3ah, IEEE 802.1ag |
| Device Type |
| Switch - 24 ports - L3 - managed |
| Enclosure Type |
| 1U |
| Features |
| Flow control, layer 2 switching, DHCP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, Weighted Random Early Detection (WRED), DHCP snooping, Trivial File Transfer Protocol (TFTP) support, |
| Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping |
| Encryption Algorithm |
| PKI |
| Routing Protocol |
| OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, VRRPE, policy-based routing (PBR), RIPng |
| Power Over Ethernet (PoE) |
| PoE |
| Ports |
| 24 x 10/100/1000 + 4 x SFP+ |
| Interfaces |
| Gigabit Ethernet |
| MainSpecs |
| Subtype |
| Gigabit Ethernet |
| Remote Management Protocol |
| RMON, Telnet, SNMP 3, HTTPS, SSH |
| Enclosure Type |
| 1U |
| Power Over Ethernet (PoE) |
| PoE |
| Routing Protocol |
| OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, VRRPE, policy-based routing (PBR), RIPng |
| Ports |
| 24 x 10/100/1000 + 4 x SFP+ |
| MAC Address Table Size |
| 32K entries |
| Product Description |
| HP A5800-24G-PoE Switch - switch - 24 ports - managed |
| Power |
| AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) |
| 17.3 in x 16.8 in x 1.7 in |
| Weight |
| 17.6 lbs |
| Features |
| Flow control, layer 2 switching, DHCP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, Weighted Random Early Detection (WRED), DHCP snooping, Trivial File Transfer Protocol (TFTP) support, |
| Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping |
| Device Type |
| Switch - 24 ports - L3 - managed |
| Compliant Standards |
| IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x, IEEE 801.1p, IEEE 802.3ah, IEEE 802.1ag |
| Power Redundancy |
| Yes |
| Interfaces |
| Gigabit Ethernet |
| Expansion / Connectivity |
| Expansion Slot(s) |
| 1 (total) / 1 (free) x expansion slot |
| Interfaces |
| 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE ¦ 4 x SFP+ |
| Expansion Slots |
| 1 (total) / 1 (free) x expansion slot |
| Power |
| Power Redundancy |
| Yes |
| Power Device |
| Power supply - hot-plug - plug-in module |
| Voltage Required |
| AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous |
| Depth |
| 16.8 in |
| Height |
| 1.7 in |
| Weight |
| 17.6 lbs |
| Width |
| 17.3 in |
| Environmental Parameters |
| Humidity Range Operating |
| 10 - 90% |
| Max Operating Temperature |
| 113 °F |
| Min Operating Temperature |
| 32 °F |
| Dimensions & Weight |
| Weight |
| 17.6 lbs |
| Depth |
| 16.8 in |
| Height |
| 1.7 in |
| Width |
| 17.3 in |
HP 5800 24G PoE JC099A 10/100/1000 PoE Switch Pdf Dosyası521.01 KB
Teknik Kısa
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE : PoE
