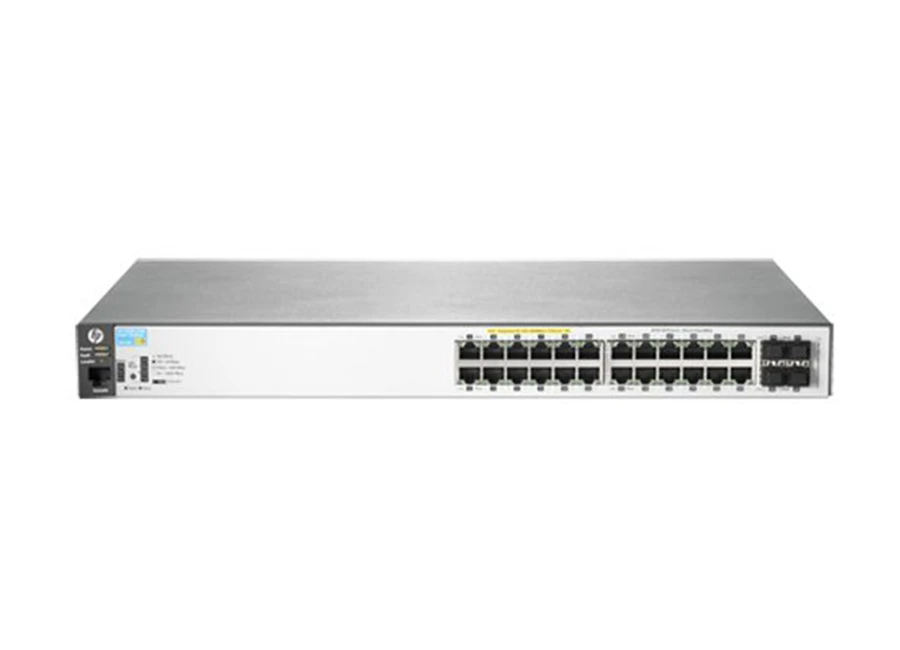

HPE Aruba 2530 24G J9854A PoE Switch
Özellikler
Teknik Özellikler
J9854A | |
Type | Aruba 2530-24G-PoE+-2SFP+ Switch |
System specifications | |
Ports | · 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASET,IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX:half or full; 1000BASE-T: full only; |
· 2 SFP+ fixed 1000/10000 SFP+ ports; | |
· 1 dual-personality (RJ-45 or USB micro-B) serial console port. | |
Memory and processor | ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3DIMM; packet buffer size: 1.5 MB |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
Performance (IPv6 Ready Certified) | |
100 Mb Latency | < 7.3 µs (LIFO 64-byte packets) |
1000 Mb Latency | < 12.7 µs (LIFO 64-byte packets) |
10 Gb/s Latency | < 4.0 µs (LIFO 64-byte packets) |
Throughput | up to 65.4 million pps (64-byte packets) |
Switching capacity | 88 Gb/s |
MAC address table size | 16000 entries |
Physical specifications | |
Dimensions (W x D x H) | 44.3 x 33.02 x4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
Weight | 3.9 kg (8.6 lb) |
Electrical specifications | |
Maximum heat dissipation | 118 BTU/hr (124.49 kJ/hr), (switch only: 118BTU/hr; combined switch + max. PoE devices:757 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 2.9/1.4 A |
Idle power1 | 24.7 W |
Maximum power rating2 | 222.2 W |
PoE power | 195 W |
Frequency | 50/60 Hz |
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected. 2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports. | |
Environmental specifications | |
Operating temperature | ° to 45°C (32° to 113°F) |
Operating relative humidity | 15% to 95% @ 40°C (104°F), noncondensing |
Non-operating/storage temperature | -40° to 70°C (-40° to 158°F) |
Non-operating/storage relative humidity | 15% to 90% @ 65°C (149°F), noncondensing |
Altitude | up to 3 km (10,000 ft) |
Acoustic | Power: 31.3 dB, Pressure: 24 dB |
Safety agency certifications | |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN60950-1 |
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3afapply to PoE+ models only. SFPs with revision "B" or later (e.g., J4858B, J4859C) are required with this product. This product supports only 1 Gigabit SFP & 10 Gigabit SFP+ transceivers, as well as 10 Gigabit Direct Attach Cables. |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 130-200 Watt
