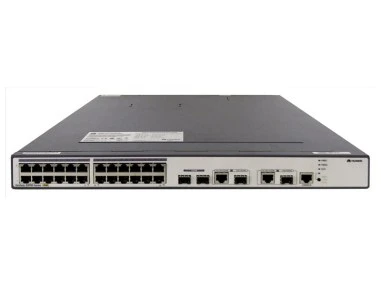

1000 PoE Switch

Özellikler

AC Power, already included 1 500W AC Power Supply
POE Switch, support POE+
Max can supply 24 ports in 802.3af 15.4W PoE or 12 ports in 802.3at 30W PoE+
Layer 3 Ethernet Switch
Support 1 Extended Slot
Software: Enhanced Version
Intelligent Stacking(iStack)
Support Static routing, RIP
Packing size: 577*590*120mm
Weight: 6.6KG

Teknik Özellikler

Specification
Fixed port	Twenty 10/100/1000Base-T ports and four GE combo ports
Forwarding performance	96 Mpps
Extended slot	Provide two extended slots, one for an uplink subcard and the other for a stack card.
Switching Capacity	256Gbps
MAC address table	IEEE 802.1d compliance
	16K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4K VLANs
	Guest VLAN and voice VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN Mapping
	SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
	SEP
	ERPS(G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
	STP, RSTP, and MSTP
	BPDU protection, root protection, and loop protection
	E-Trunk
IP routing	Static routing
IP routing	RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
IPv6 features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
	MLD v1/v2 snooping
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, interface, and VLAN
	Port isolation, port security, and sticky MAC
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	802.1x authentication and limit on the number of users on an interface
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	Hypertext Transfer Protocol Secure (HTTPS)
	CPU defense
	Blacklist and whitelist
OAM	Supports
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test
	Stacking
	MAC Forced Forwarding (MFF)
	Port mirroring and RSPAN (remote port mirroring)
	Remote configuration and maintenance using Telnet
	SNMP v1/v2/v3
	RMON
	Web NMS
	HGMP
	System logs and alarms of different levels
	802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
	GVRP
	MUX VLAN
DDR memory	256 MB
Flash memory	32 MB
Mean time between failures (MTBF)	S5700-28C-PWR-SI: 53.6 years when a 2x10GE card is configured; 74.6 years when a 4xGE front card is configured; 25.68 years when a 4x10GE front card is configured
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Surge protection: Service port protection	PoE switch: ±1 kV in common mode
Surge protection: Power supply protection	PoE switch: ±2 kV in differential mode; ±4 kV in common mode
Stack port	Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	The PWR series support PoE.
Input DC voltage: Rated input voltage range	-48 V DC to -60 V DC
Input DC voltage: Maximum voltage range	-36 V DC to -72 V DC
Input AC voltage: Rated input voltage range	100 V AC to 240 V AC, 50/60 Hz
Input AC voltage: Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)	S5700-28C-PWR-SI: 836 W (system power consumption: 96 W; PoE: 740 W)
Operating temperature	°C to 50°C
Storage temperature	-40°C to +70°C
Noise under normal temperature (27°C, sound power)	S5700-28C-PWR-SI: less than 45 dBA
Relative humidity	5% RH to 95% RH, noncondensing
Operating altitude	PoE switch: 0 m to 5000 m
EMC	CISPR22 Class A
	CISPR24
	EN55022 Class A
	EN50024
	ETSI EN 300 386 Class A
	CFR 47 FCC Part 15 Class A
	ICES 003 Class A
	AS/NZS CISPR22 Class A
	IEC61000-4-2
	ITU-T K 20
	ITU-T K 44
Environmental standards	RoHS
	REACH
	WEEE
Security	IEC 60950-1
	EN 60950-1/A11/A12
	UL 60950-1
	CSA C22.2 No 60950-1
	AS/NZS 60950.1
Laser safety	IEC60825-1
	IEC60825-2
	EN60825-1
	EN60825-2
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Fully loaded	≤ 8.5 kg
Empty loaded	≤ 5 kg
