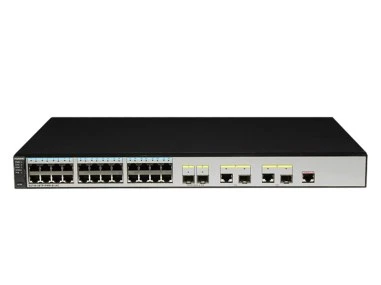

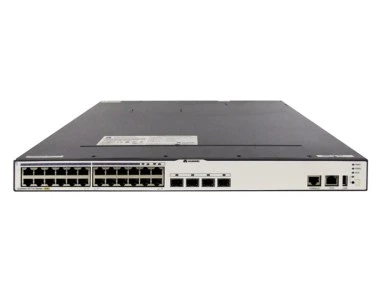

Huawei S5700 28TP PWR LI AC 10/100/1000 PoE Switch

Teknik Özellikler

 Fixed Ports
24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports
 MAC Address Table
16K MAC address entries MAC address learning and aging
Static, dynamic, and blackhole
MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC learning limiting
VLAN Features
4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces
1:1 and N:1 VLAN mapping
Jumbo frame
10K
Reliability
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
SEP
ERPS (G.8032)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
BPDU tunnel
IP Routing
Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng)
IPv6 features
Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type
MLDv1/v2 snooping
Multicast
IGMPv1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Interface-based multicast traffic statistics
QoS/ACL
Rate limiting on packets sent and received by an interface
Packet redirection
Interface-based traffic policing and two-rate and three-color CAR
Eight queues on each interface
WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on interfaces
Security
Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID
Port isolation, port security, and sticky MAC
MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses IEEE
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH V2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
Access Security
DHCP relay, DHCP server, DHCP snooping, and DHCP security
Lightning Protection
Service interface: 6 kV
Super Virtual Fabric (SVF)
Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations
Supports independent running client
Management and Maintenance
iStack (excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches)
Virtual Cable Test (VCT)
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
eSight and web-based NMS
HTTPS
LLDP/LLDP-MED
System logs and multi-level alarms
802.3az EEE
Dying Gasp (excluding battery LAN switches)
Device hibernation mode (excluding PWR serials switches, battery LAN switches, S5700-10P-LI, S5700-28X-LI-24S, S5701-28X-LI-24S-AC and S5700-52X-LI-48CS-AC)
Interoperability
Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Operating Environment
Long-term operating temperature: 0°C to 50°C
Relative humidity: 5% to 95% (non-condensing)
Input Voltage
AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz, Maximum voltage range: 90V to 264V, 47 Hz/63 Hz
DC:
Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V
Note: Models supporting PoE do not use DC power supplies.
Power Socket Position
Rear power sockets
Battery
One slot for lithium battery or lead-acid battery charger module (supported by battery LAN switches) Note
Battery Type
Internal BAT-4AHA lithium batteries and external lead-acid batteries connected to the lead-acid battery charger module in the battery slot (supported by battery LAN switches)
Battery Management
Web-based management system used to check the battery status and manage the battery (supported by battery LAN switches)
Dimensions (W x D x H)
442 mm x 310 mm x 43.6 mm
 Power Consumption
< 469.7W (PoE: 370W)


Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Combo
PoE Port Sayısı : Tooltip 24 Port
PoE Güç Bütçesi : 200-400 Watt
