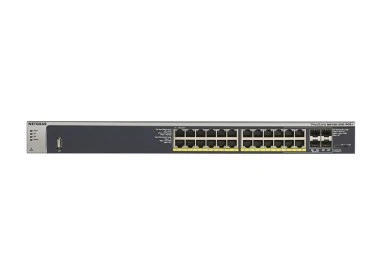

Netgear GSM7228PS 100EUS PoE Switch
Teknik Özellikler
Device Type | Switch - 24 ports - L2+ - Managed - stackable |
Enclosure Type | Desktop 1U |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 (PoE) + 4 x shared SFP + 2 x SFP+ + 8 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 384 W |
Performance | Non-blocking backplane speed: 144 Gbps ¦ Throughput: 107.1 Mbps |
MAC Address Table Size | 8K entries |
Max Units In A Stack | 8 |
Routing Protocol | Static IP routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI |
Encryption Algorithm | TLS 1.0, SSL 3.0 |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, Layer 2 switching, power over Ethernet (PoE), BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, manageable, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, Dynamic ARP Inspection (DAI), PoE+ |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP) |
Processor | 1: 666 MHz |
RAM | 256 MB |
Flash Memory | 32 MB Flash (Firmware) |
Status Indicators | Port transmission speed, power, link OK, status, link/activity |
Interfaces | 16 x 1000Base-T - RJ-45 - PoE ¦ 1 x serial (RS-232) - DB-9 - management ¦ 4 x Gigabit LAN - SFP ¦ 2 x 10Gbit LAN - SFP+ ¦ 8 x 1000Base-T - RJ-45 - PoE+ - 30 W |
Expansion Slots | 2 (total) / 2 (free) x Expansion Slot |
Power Device | Internal power supply - hot-plug |
Voltage Required | AC 120/230 V (50/60 Hz) |
Features | Redundant Power System (RPS) connector |
Cables Included | 1 x null modem cable |
Rack Mounting Kit | Included |
MTBF | 211,069 hours |
Compliant Standards | CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A, C-Tick Class A |
Localisation | Europe |
Service & Support | NETGEAR lifetime warranty |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Desk Mount
PoE Port Sayısı : 24 Port
PoE Güç Bütçesi : 200-400 Watt
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
