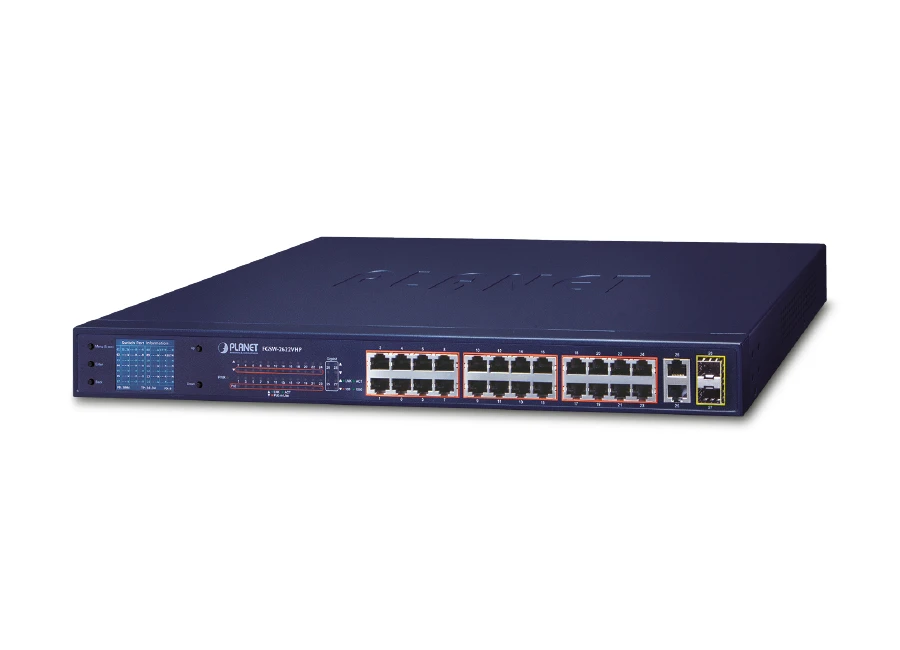

Planet FGSW 2622VHP 10/100 PoE Switch
Teknik Özellikler
| Donanım Özellikleri | |
| 802.3af/802.3at PoE Injector Port | 24 |
| 10/100BASE-TX MDI/MDIX Ports | 24 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 (Combo Port) |
| 1000BASE-X SFP/mini-GBIC Slots | 2 (Combo Port) |
| DIP Switch | 1 for standard mode/VLAN mode operation |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps/non-blocking |
| Switch Throughput@64 bytes | 6.54Mpps@64bytes |
| MAC Address Table | 4K entries |
| Maximum Frame Size | 1536 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: |
| Power (Green) | |
| 10/100BASE-TX RJ45 Interfaces: | |
| 10/100Mbps LNK/ACT (Green) | |
| PoE-in-Use (Orange) | |
| 10/100/1000BASE-T RJ45/SFP Interfaces: | |
| LNK/ACT (Green) | |
| 100/1000 (Green) | |
| LCD Monitor | Total PoE budget |
| Total PoE usage | |
| Per port PoE usage | |
| PD light load protection/PD over load protection | |
| Short-circuit protection(SCP) | |
| Low voltage alarm, high voltage alarm | |
| Refresh PoE status display every 10 seconds | |
| Dimensions (W x D x H) | 233 x 440 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 3.3kg |
| Power Requirements | AC 100~240V, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 330 watts/1125 BTU |
| Thermal Fan | 2 |
| ESD Protection | Contact Discharge of ±4KV DC |
| Air Discharge of ±6KV DC | |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE |
| IEEE 802.3at Power over Ethernet Plus/PSE | |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 300 watts |
| Max. Number of Class 2 PDs | 24 |
| Max. Number of Class 3 PDs | 23 |
| Max. Number of Class 4 PDs | 11 |
| Standart Uygunluğu | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Çevresel Özelikler | |
| Çalışma | Sıcaklık: 0 ~ 50 degrees C |
| Nem Oranı: 5 ~ 95% (non-condensing) | |
| Saklama | Sıcaklık: -10 ~ 70 degrees C |
| Nem Oranı: 5 ~ 95% (non-condensing) | |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
